Product Details:
|
| Surface Orientation: | A-Plane(11-20) | Product Name: | 50mm Sapphire Substrate Wafer |
|---|---|---|---|
| Material: | High Purity Al₂O₃(＞99.995%) | Thickness: | 430±10μm |
| R-plane: | R9 | Diameter: | 50.8 ±0.10 |
| Highlight: | Sapphire Substrate 440um,single crystal sapphire 50mm,A Plane Sapphire Substrate |
||
50mm Sapphire Substrate Wafer Thk 430μm OF Length (Mm) 16 LED Chip

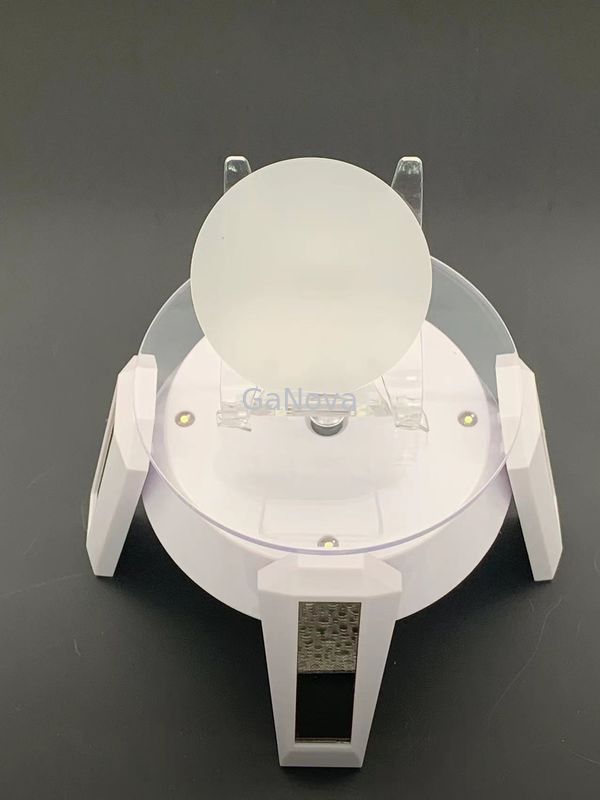

JDCD08-001-001 Diameter 50mm Sapphire substrate wafer , Thk 430μm, crystal orientation C/M0.2, OF length (mm) 16 LED chip,substrate material
The material is grown and orientated, and substrates are fabricated and polished to an extremely smooth damage free Epi-Ready surface on one or both sides of the wafer. A variety of wafer orientations and sizes up to 6" diameter are available.
A-Plane sapphire substrates - are usually used for hybrid microelectronic applications requiring a uniform dielectric constant and highly insulating characteristics.
C-Plane substrates - tend to be used for lll-V and ll-Vl compounds, such as GaN, for bright blue and green LED and laser diodes.
R-Plane substrates - these are preferred for the hetero-epitaxial deposition of silicon used in microelectronic IC applications.
|
Parameters |
Specification | ||
| Unit | Target | Tolerance | |
| Material | High purity Al2O3(＞99.995%) | ||
| Diameter | mm | 50.8 | ±0.10 |
| Thickness | μm | 430 | ±10 |
| Surface Orientation | A-Plane(11-20) | ||
| -Off Angle toward M-axis | degree | 0.00 | ±0.10 |
| -Off Angle toward A-axis | degree | 0.00 | ±0.10 |
| Flat Orientation | C-Plane(0001) | ||
| -Flat Off-set Angle | degree | 0.0 | ±0.2 |
| Flat Lenght | mm | 16.0 | ±1 |
| R-plane | R9 | ||
| Front surface Roughness(Ra) | nm | ＜0.3 | |
| Back surface Roughness | μm | 0.9~1.2μm | |
| Front surface Quality | Mirror Polished,EPI-Ready | ||
| Wafer edge | R-type | ||
| Chamfer amplitude | μm | 80-160 | |
| Included angle radian between flat edge and round edge | mm | R=9 | |
| TTV | μm | ≤5 | |
| LTV(5x5mm) | μm | ≤1.5 | |
| Bow | μm | 0~-5 | |
| Warp | μm | ≤10 | |
| Laser mark | As customer required | ||
