Product Details:
|
| Dimensions: | 50.8 ± 1 Mm | Thickness: | 350 ±25µm |
|---|---|---|---|
| TTV: | ≤ 10µm | BoW: | ≤ 20 μm |
| Macro Defect Density: | 0cm⁻² | Useable Area: | > 90% (edge Exclusion) |
| Product Name: | Free-standing GaN Substrates | Dislocation Density: | From 1x 10⁵ To 3 X 10⁶cm⁻² (calculated By CL)* |
| Highlight: | 350um GaN Epitaxial Wafer,Free Standing GaN Substrates,GaN Epitaxial Wafer 10 X 10.5 mm2 |
||

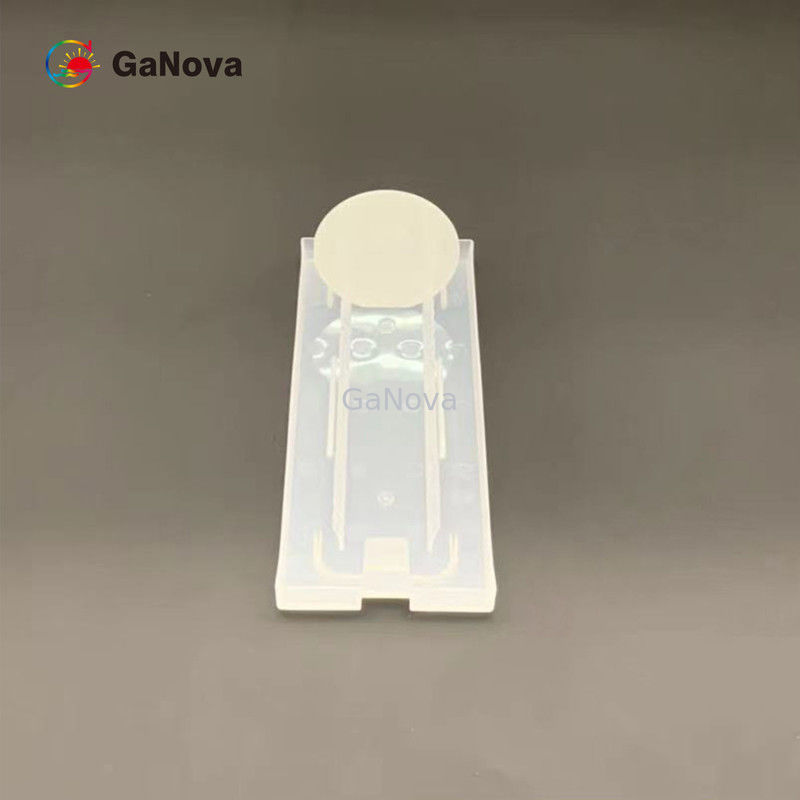

2inch C-face Fe-doped SI-type free-standing GaN single crystal substrate Resistivity > 106 Ω·cm RF devices
To reduce the Fe trapping carrier and the sheet resistances of the two-dimension electron gas generated from the interface of AlGaN and GaN, the thickness ratio of Fe-doped and undoped GaN bi-epilayers was also optimized. AlGaN/GaN high electron mobility transistors with the optimum doping concentration of Fe-doped GaN and suitable thickness of undoped GaN have been successfully developed.
| 2-inch Free-standing SI-GaN Substrates | ||||||||
| Excellent level (S) | Production level (A) | Research level (B) | Dummy level (C) |
Note: (1) Useable area: edge and macro defects exclusion (2) 3 points: the miscut angles of positions (2, 4, 5) are 0.35 ± 0.15o |
||||
| S-1 | S-2 | A-1 | A-2 | |||||
| Dimension | 50.8 ± 1 mm | |||||||
| Thickness | 350 ± 25 μm | |||||||
| Orientation flat | (1-100) ± 0.5o, 16 ± 1 mm | |||||||
| Secondary orientation flat | (11-20) ± 3o, 8 ± 1 mm | |||||||
| Resistivity (300K) | > 1 x 106 Ω·cm for Semi-insulating (Fe-doped; GaN-FS-C-SI-C50) | |||||||
| TTV | ≤ 15 μm | |||||||
| BOW | ≤ 20 μm | ≤ 40 μm | ||||||
| Ga face surface roughness |
< 0.2 nm (polished) or < 0.3 nm (polished and surface treatment for epitaxy) |
|||||||
| N face surface roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||||||
| Package | Packaged in a cleanroom in single wafer container | |||||||
| Useable area | > 90% | >80% | >70% | |||||
| Dislocation density | <9.9x105 cm-2 | <3x106 cm-2 | <9.9x105 cm-2 | <3x106 cm-2 | <3x106 cm-2 | |||
| Orientation:C plane (0001) off angle toward M-axis |
0.35 ± 0.15o (3 points) |
0.35 ± 0.15o (3 points) |
0.35 ± 0.15o (3 points) |
|||||
| Macro defect density (hole) | 0 cm-2 | < 0.3 cm-2 | < 1 cm-2 | |||||
| Max size of macro defects | < 700 μm | < 2000 μm | < 4000 μm | |||||
* National standards of China (GB/T32282-2015)
