Product Details:
|
| Product Name: | CVD Diamond Substrates | Fracture Toughness(MPa·m1/2): | 1~8 |
|---|---|---|---|
| Firction Coefficient: | 0.1 | Thermal Conductivity(300K,Wm·K): | 1000~2000 |
| Light Transmittance: | 225nm To Far Infrared | Band Gap Width(ev): | 5.47 |
| Resistivity(Ω·cm): | ＞10¹º | Electron Mobility(cm2/V·S): | 4500 |
| Highlight: | Electronic Grade Single Crystal Diamond,10*10mm2*0.3mm Single Crystal Diamond |
||

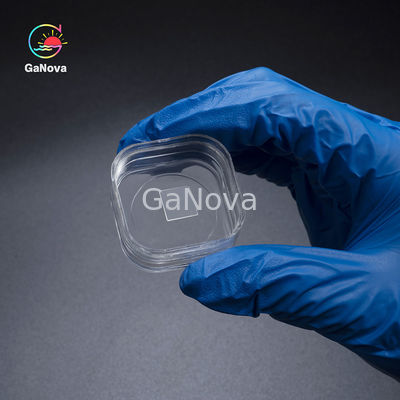

10*10mm2*0.3mm electronic grade single crystal diamond,N content<100ppb, XRD<0.015º Thermal conductivity 1000-2200 for heat sink
Overview
Single-crystal diamond wafers enable critical advances in both RF power technology used for 5G communications and satellites; as well as in the power electronics used in electric vehicles.
CVD stands for “Chemical Vapor Deposition,” the process of breaking down natural gas like methane into carbon atoms that amass around a diamond starter to form a new diamond. The processing occurs in a vacuum chamber where crystals undergo heat and pressure treatment to eliminate coloration.
Specification
| properties | Synthetic diamond | |
| Density(g/cm3) | 3.515 | Intrinsic properties |
| Young’s modulus(GaP) | 1050 |
Mechanical property |
| Hardness(GaP) |
70~120single crystal 60~100 polycrystalline |
|
| Breaking strength |
2.5-3GPasingle crystal 200-1100MPa polycrystalline |
|
| Fracture toughness(MPa·m1/2) | 1~8 | |
| Firction coefficient | 0.1 | |
| Thermal conductivity(300K,Wm·K) | 1000~2200 | Thermal properties |
| Coefficient of thermal expansion(×10-6/℃) | 1(room temperature) | |
| Rerfractive index(590nm) | 2.4 | Optical properties |
| Light transmittance | 225nm to far infrared | |
| Band gap width(ev) | 5.47 | Electrical properties |
| Resistivity(Ω·cm) | ＞1010 | |
| Electron mobility(cm2/V·S) | 4500 | |
| Hole mobility(cm2/V·S) | 3800 | |
| Dielectric constant | 5.5 | Dielectric properties |
| Dielectric losses | ＜2×10-4 |
