JDCD05-001-007 CVD Diamond Substrates

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

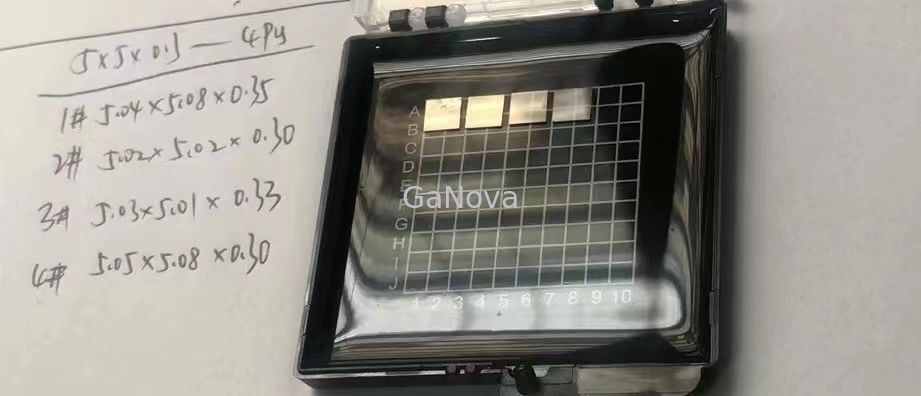

JDCD05-001-007 CVD Diamond Substrates

JDCD05-001-007 CVD Diamond Substrates
JDCD05-001-007 CVD Diamond Substrates

Large Image :  JDCD05-001-007 CVD Diamond Substrates

Product Details:
Brand Name: GaNova
Model Number: JDCD05-001-007
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 5000pcs/month

JDCD05-001-007 CVD Diamond Substrates

Description
Density(g/cm3): 3.515 Young’s Modulus(PGa): 1050
Product Name: CVD Diamond Substrates Rerfractive Index(590nm): 2.4
Light Transmittance: 225nm To Far Infrared Band Gap Width(ev): 5.47
Resistivity(Ω·cm): >10¹º Electron Mobility(cm2/V·S): 4500
Highlight:

CVD Diamond Substrates

,

CVD Diamond Substrates 007

JDCD05-001-007 CVD Diamond Substrates



Overview

Diamond is a unique material that often exhibits extreme properties compared to other materials. Discovered about 30 years ago, the use of hydrogen in plasma-enhanced chemical vapor deposition (CVD) has enabled the growth and coating of diamond in film form on various substrate materials.



Specification

properties Synthetic diamond
Density(g/cm3) 3.515 Intrinsic properties
Young’s modulus(GaP) 1050







Mechanical property

Hardness(GaP)

70~120single crystal

60~100 polycrystalline

Breaking strength

2.5-3GPasingle crystal

200-1100MPa polycrystalline

Fracture toughness(MPa·m1/2) 1~8
Firction coefficient 0.1
Thermal conductivity(300K,Wm·K) 1000~2200 Thermal properties
Coefficient of thermal expansion(×10-6/℃) 1(room temperature)
Rerfractive index(590nm) 2.4 Optical properties
Light transmittance 225nm to far infrared
Band gap width(ev) 5.47 Electrical properties
Resistivity(Ω·cm) >1010
Electron mobility(cm2/V·S) 4500
Hole mobility(cm2/V·S) 3800
Dielectric constant 5.5 Dielectric properties
Dielectric losses <2×10-4





About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
