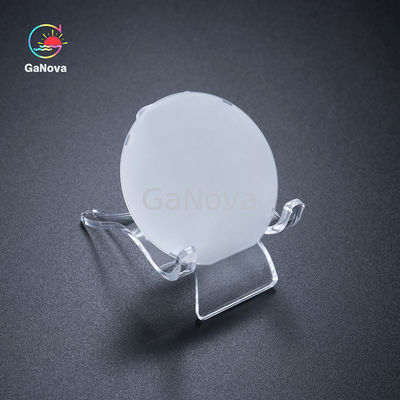

JDCD08-001-002 2inch A-Plane Sapphire Substrate Wafer

JDCD08-001-002 2inch A-Plane Sapphire Substrate Wafer
JDCD08-001-002 2inch A-Plane Sapphire Substrate Wafer

Large Image :  JDCD08-001-002 2inch A-Plane Sapphire Substrate Wafer

Product Details:
Model Number: JDCD08-001-002
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

JDCD08-001-002 2inch A-Plane Sapphire Substrate Wafer

Description
Surface Orientation: A-Plane(11-20) Thickness: 430 ± 10 μm
R-plane: R9 Diameter: 50.8±0.10mm
Material: High Purity Al2O3(>99.995%)

JDCD08-001-002 2inch A-Plane Sapphire Substrate Wafer



Sapphire's high purity and strength is an excellent and industry-accepted material for Semiconductor manufacturing. Its durability and scratch resistance make Sapphire ideal for vacuum environments and high plasma resistance to withstand etching.
Sapphire is an oxide crystal with a high thermal conductivity comparable to that of stainless steel at room temperature.




Parameters

Specification
Unit Target Tolerance
Material High purity Al2O3(>99.995%)
Diameter mm 50.8 ±0.10
Thickness μm 430 ±10
Surface Orientation A-Plane(11-20)
-Off Angle toward M-axis degree 0.00 ±0.10
-Off Angle toward A-axis degree 0.00 ±0.10
Flat Orientation C-Plane(0001)
-Flat Off-set Angle degree 0.0 ±0.2
Flat Lenght mm 16.0 ±1
R-plane R9
Front surface Roughness(Ra) nm <0.3
Back surface Roughness μm 0.9~1.2μm
Front surface Quality Mirror Polished,EPI-Ready
Wafer edge R-type
Chamfer amplitude μm 80-160
Included angle radian between flat edge and round edge mm R=9
TTV μm ≤5
LTV(5x5mm) μm ≤1.5
Bow μm 0~-5
Warp μm ≤10
Laser mark   As customer required





About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
