JDCD08-001-005 4inch R-Plane Sapphire Substrate Wafer

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

JDCD08-001-005 4inch R-Plane Sapphire Substrate Wafer

JDCD08-001-005 4inch R-Plane Sapphire Substrate Wafer
JDCD08-001-005 4inch R-Plane Sapphire Substrate Wafer

Large Image :  JDCD08-001-005 4inch R-Plane Sapphire Substrate Wafer

Product Details:
Model Number: JDCD08-001-005
Payment & Shipping Terms:

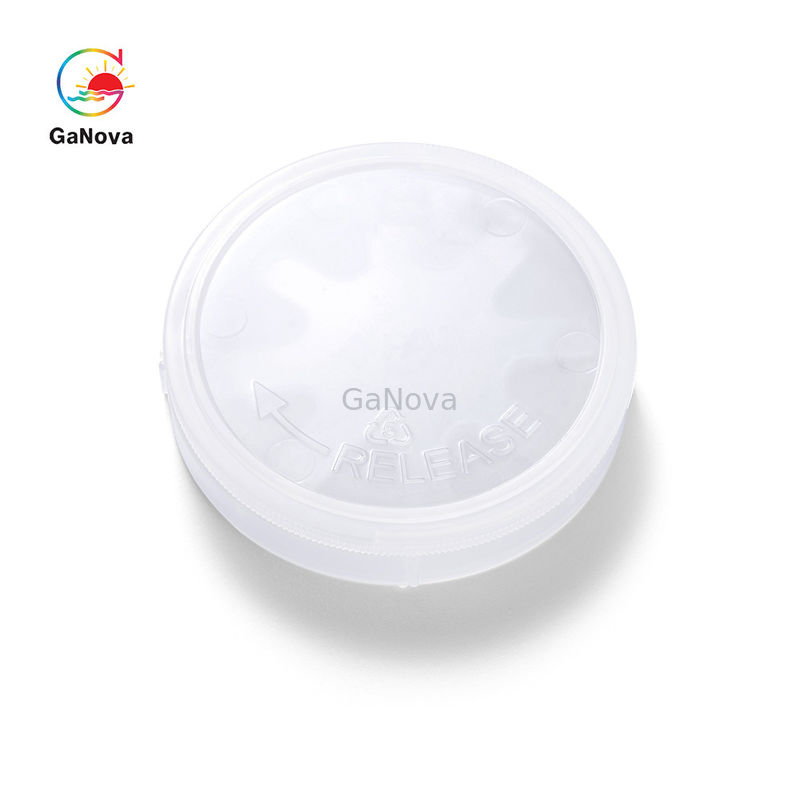

Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

JDCD08-001-005 4inch R-Plane Sapphire Substrate Wafer

Description
Material: High Purity Al2O3 Diameter: 100.0±0.2mm
Thickness: 460±25μm Surface Orientation: R-plane(11-20)±0.3°
R-plane: 45±2°/C CCW On R Primary Flat Lenght: 32.5±1.0
Highlight:

4inch Sapphire Substrate Wafer

JDCD08-001-005 4inch R-Plane Sapphire Substrate Wafer



Sapphire's high purity and strength is an excellent and industry-accepted material for Semiconductor manufacturing. Its durability and scratch resistance make Sapphire ideal for vacuum environments and high plasma resistance to withstand etching.


In practical production, the sapphire wafer is made by cutting the crystal bar and then grinding and polishing. Generally, the semiconductor wafer is cut into a wafer by wire cutting or multi-wire cutting machine.



4inch R-plane High Purity Al2O3 substrates
Item Specification
Material High purity Al2O3
Diameter 100.0±0.2mm
Thickness 460±25μm
Orientation R-plane(11-20)±0.3°
Primary Flat Orientation 45±2°/C CCW on R
Primary Flat Lenght 32.5±1.0
TTV ≤15μm
Bow ≤15μm
Warp ≤20μm
Front surface Roughness(Ra) Ra≤0.3nm
Back surface Roughness(Ra 0.8~1.2μm
Laser mark back side
Package

25pcs/Casselte,Vacuum-sealed,

Nitrogen-filed,Class-100Cleanroom
