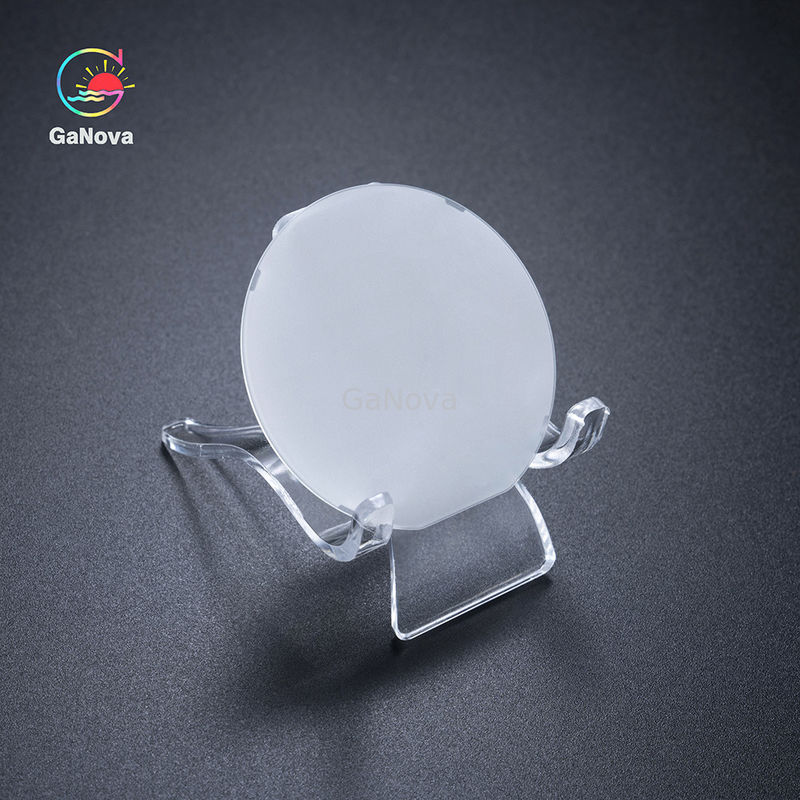

JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer

JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer
JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer
JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer

Large Image :  JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer

Product Details:
Model Number: JDCD08-001-006
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer

Description
Material: High Purity Al2O3(>99.995%) Surface Orientation: C-Plane(0001)
Thickness: 625 ±15μm Flat Orientation: A-Plane(11-20)
Diameter: 150.00±0.1mm Front Surface Quality: Mirror Polished,EPI-Ready
Highlight:

6inch Sapphire Substrate Wafer

JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer



Sapphires are Second Only to Diamonds in Durability
Diamond is the most durable naturally occurring element on earth and ranks as a 10 out of 10 on Mohs Scale of Mineral Hardness. Sapphires are also very durable and rank as a 9 out of 10 on Mohs Scale.

Nearly all sapphires and sapphire jewelry from online sources and in traditional retail stores are described as “natural”.




6inch C-plane High Purity Al2O3 substrates



Parameters

Specification
Unit Target Tolerance
Material High purity Al2O3(>99.995%)
Diameter mm 150.00 ±0.1
Thickness μm

1000

±15
Surface Orientation C-Plane(0001)
-Off Angle toward M-axis degree 0.20 ±0.1
-Off Angle toward A-axis degree 0.00 ±0.10
Flat Orientation A-Plane(11-20)
-Flat Off-set Angle degree 0.0 ±0.2
Flat Lenght mm 47.5 ±1
Front surface Roughness(Ra) nm ≤0.2
Back surface Roughness μm 0.8~1.2μm
Front surface Quality Mirror Polished,EPI-Ready
Wafer edge T-type or R-type
R-plane R9
TTV μm ≤10
LTV(5x5mm) μm ≤2(75%<1.8μm)
Bow μm -0.5~-20
Warp μm ≤25
Laser mark   As customer required
