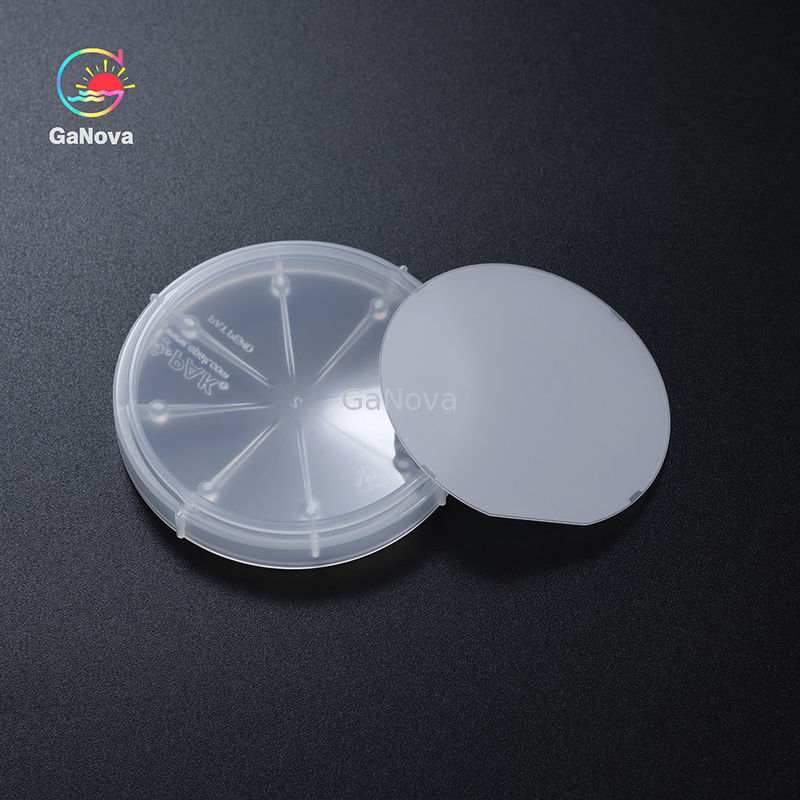

JDCD08-001-007 8inch C-Plane Sapphire Substrate Wafer

JDCD08-001-007 8inch C-Plane Sapphire Substrate Wafer
JDCD08-001-007 8inch C-Plane Sapphire Substrate Wafer
JDCD08-001-007 8inch C-Plane Sapphire Substrate Wafer JDCD08-001-007 8inch C-Plane Sapphire Substrate Wafer

Large Image :  JDCD08-001-007 8inch C-Plane Sapphire Substrate Wafer

Product Details:
Model Number: JDCD08-001-007
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

JDCD08-001-007 8inch C-Plane Sapphire Substrate Wafer

Description
Material: High Purity Al2O3(>99.995%) Surface Orientation: C-Plane(0001)
R-plane: R9 Thickness: 725±25 μm
Diameter: 200.00±0.1mm TTV: ≤15μm
Highlight:

8inch Sapphire Substrate Wafer

JDCD08-001-007 6inch C-Plane Sapphire Substrate Wafer

Ruby and sapphires are both made of corundum (aluminium oxide - Al2O3). Corundum is one of the hardest known natural substance after diamond. In addition, because corundum is so hard and resistant to weathering, it can also be found in sedimentary deposits and sedimentary rocks.
Sapphire ranks 9 on the Mohs hardness scale. Corundum is stable under normal wearing conditions, which means it's resistant to the effects of heat, light, and common chemicals.




8inch C-plane High Purity Al2O3 substrates



Parameters

Specification
Unit Target Tolerance
Material High purity Al2O3(>99.995%)
Diameter mm 200.00 ±0.1
Thickness μm customize ±25
Surface Orientation C-Plane(0001)
-Off Angle toward M-axis degree 0.00 ±0.1
-Off Angle toward A-axis degree 0.00 ±0.1
Notch A-Plane(11-20)
Notch degree 0.0 ±0.3°
Notch mm 1.0 ±0.1
Notch degree 92° ±2°
Notch R nm 1.0 ±0.2
R-plane R9
TTV μm ≤15
Bow μm ≤30
Warp μm ≤45
Ra nm First Ra≤0.3nm;Back Ra;0.8-1.2μm
Laser mark   As customer required
