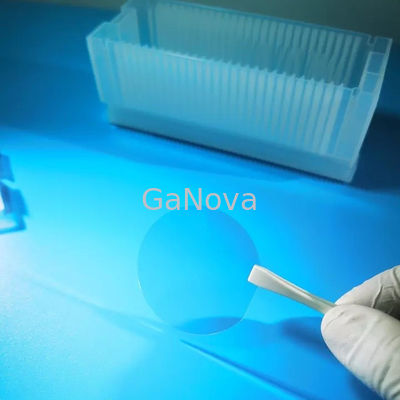

R Type 50mm Sapphire Wafer Thickness 420μm OF length (mm) 16 LED chip

R Type 50mm Sapphire Wafer Thickness 420μm OF length (mm) 16 LED chip
R Type 50mm Sapphire Wafer Thickness 420μm OF length (mm) 16 LED chip

Large Image :  R Type 50mm Sapphire Wafer Thickness 420μm OF length (mm) 16 LED chip

Product Details:
Model Number: JDCD08-001-001
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

R Type 50mm Sapphire Wafer Thickness 420μm OF length (mm) 16 LED chip

Description
Product Name: Sapphire Substrate Wafer Material: High Purity Al₂O₃(>99.995%)
Wafer Edge: R-type Surface Orientation: A-Plane(11-20)
Thickness: 430 ±15μm Diameter: 50.8 ±0.10
Highlight:

R Type Sapphire Wafer

,

50mm sapphire crystal wafer

,

Sapphire Wafer 420um

50mm Sapphire Substrate Wafer High Purity Al2O3(>99.995%) Thickness 430 ± 10 μm

JDCD08-001-001 Diameter 50mm Sapphire substrate wafer , Thk 430um, crystal orientation C/M0.2, OF length (mm) 16 LED chip,substrate material



Unique Mechanical Properties

Sapphire as a material is extremely hard, having a Mohs hardness of 9. This is secondly only to the natural mineral Diamond, which has a Mohs hardness value of 10. As a result, it is also highly scratch-resistant, which makes it suitable for several industries. As compared to sapphire, glass has a hardness value close to 5.5.



Parameters

Specification
Unit Target Tolerance
Material High purity Al2O3(>99.995%)
Diameter mm 50.8 ±0.10
Thickness μm 430 ±15
Surface Orientation C-Plane(0001)
-Off Angle toward M-axis degree 0.20 ±0.10
-Off Angle toward A-axis degree 0.00 ±0.10
Flat Orientation A-Plane(11-20)
-Flat Off-set Angle degree 0.0 ±0.2
Flat Lenght mm 16.0 ±1
R-plane R9
Front surface Roughness(Ra) nm <0.3
Back surface Roughness μm 0.8~1.2μm
Front surface Quality Mirror Polished,EPI-Ready
Wafer edge R-type
Chamfer amplitude μm 80-160
Included angle radian between flat edge and round edge mm R=9
TTV μm ≤5
LTV(5x5mm) μm ≤1.5
Bow μm 0~-5
Warp μm ≤10
Laser mark   As customer required
