Product Details:
|
| Surface Orientation: | A-Plane(11-20) | Material: | High Purity Al₂O₃(＞99.995%) |
|---|---|---|---|
| Thickness: | 430 ±15μm | R-plane: | R9 |
| Diameter: | 50.8 ±0.10 | Wafer Edge: | R-type |
| Highlight: | Polishing Sapphire Crystal Substrate,flat sapphire crystal 430um,Polishing Sapphire Crystal Wafer |
||

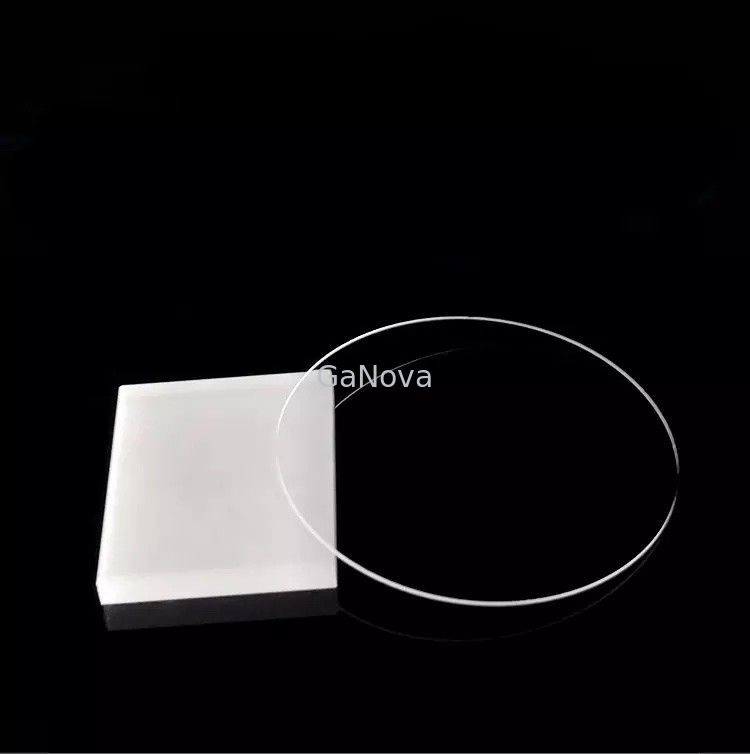

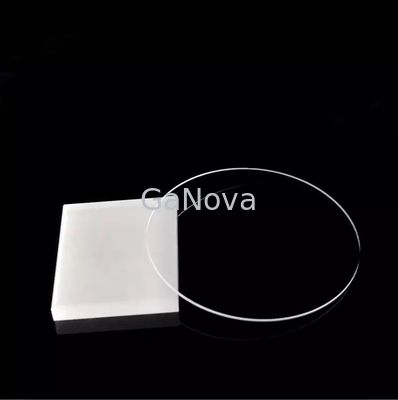

Thk 430μm 50mm Sapphire Substrate Wafer Crystal Orientation C/M0.2, OF Length (Mm) 16 LED Chip
JDCD08-001-001 Diameter 50mm Sapphire substrate wafer , Thk 430μm, crystal orientation C/M0.2, OF length (mm) 16 LED chip,substrate material
Applications
Applications of this substrate are as follows:
Infrared Applications
Optoelectronics and Electronics
SOS (Silicon on Sapphire Integrated Circuit)
Growth Substrate
|
Parameters |
Specification | ||
| Unit | Target | Tolerance | |
| Material | High purity Al2O3(＞99.995%) | ||
| Diameter | mm | 50.8 | ±0.10 |
| Thickness | μm | 430 | ±15 |
| Surface Orientation | A-Plane(11-20) | ||
| -Off Angle toward M-axis | degree | 0.20 | ±0.10 |
| -Off Angle toward A-axis | degree | 0.00 | ±0.10 |
| Flat Orientation | C-Plane(0001) | ||
| -Flat Off-set Angle | degree | 0.0 | ±0.2 |
| Flat Lenght | mm | 16.0 | ±1 |
| R-plane | R9 | ||
| Front surface Roughness(Ra) | nm | ＜0.3 | |
| Back surface Roughness | μm | 0.8~1.2μm | |
| Front surface Quality | Mirror Polished,EPI-Ready | ||
| Wafer edge | R-type | ||
| Chamfer amplitude | μm | 80-160 | |
| Included angle radian between flat edge and round edge | mm | R=9 | |
| TTV | μm | ≤5 | |
| LTV(5x5mm) | μm | ≤1.5 | |
| Bow | μm | 0~-5 | |
| Warp | μm | ≤10 | |
| Laser mark | As customer required | ||
