Product Details:
|
| Type: | Laser Diode | Application: | Laser Printing |
|---|---|---|---|
| Package Type: | Surface Mount, Standard Package | Operating Temperature: | 15-55℃ |
| Wavelength: | 915nm | Output Power: | 10 |
| Slope Efficiency: | 1.0W/A | Emitter Size: | 94μm |
| Threshold Current: | 0.5A | Power Conversion Efficiency: | 58% |
| Highlight: | 0.5A Laser Diodes Chip,915nm chip on submount laser diode,10W Laser Diodes Chip |
||
0.5A Laser Diode Chip Laser Printing Wavelength 915nm Surface Mount Standard Package

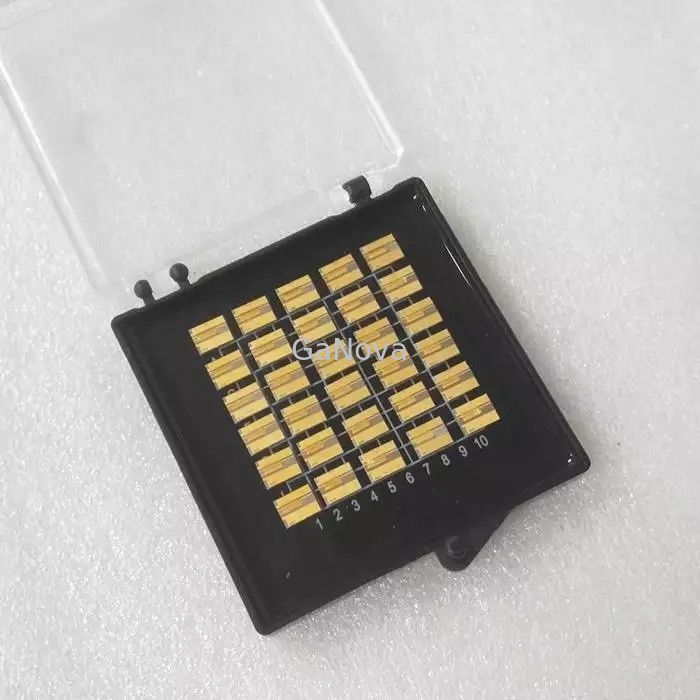

915nm 10W COS Diode Laser Chip On Submount Design
The material can be integrated by wafer bonding techniques and have superior characteristics to germanium, with a large absorption at 1.3 and 1.5 μm wavelengths and a relative low dark current, attributed to good crystal quality. This enables low-power operation and small device size. In this paper, on-chip light sources and photodetectors are integrated with Si waveguides, and an on-chip optical transmission link is demonstrated by combining these components.
|
Optical
|
|
|
Center Wavelength
|
915nm
|
|
Output Power
|
10W
|
|
Spectral Width FWHM
|
≤6nm
|
|
Slope Efficiency
|
1.0W/A
|
|
Fast Axis Divergence
|
60Deg
|
|
Slow Axis Divergence
|
11Deg
|
|
Polarization Mode
|
TE
|
|
Emitter Size
|
94um
|
|
Electrical
|
|
|
Threshold Current
|
0.5A
|
|
Operating Current
|
12A
|
|
Operating Voltage
|
1.65V
|
|
Power Conversion Efficiency
|
58%
|
|
Thermal
|
|
|
Operating Temperature
|
15-55℃
|
|
Storage Temperature
|
-30-70℃
|
|
Wavelength Temp. Coefficient
|
0.3nm/℃
|
FAQ
Q1: What payment methods do you support?
T/T and Western Union, For your Choice
Q2: How long can I receive the package?
Normally 1-2 Weeks FedEx,DHL Express,UPS,TNT
Q3: What is the lead time?
Standard product are all in stock. Shipping via Express within 3~4 working days. Customized stack need 15 working days.
Q4: Are you trading company or manufacturer?
We are manufacturer with more than 11 years of experience, and also provide the technical solution to all customers.
Q5: Can you guarantee your quality?
Of course, we are one of top reputed manufacturers in China. Quality for us is the most important thing, we put high value on our reputation. Best quality is our principle all the time.
