Product Details:
|
| Type: | Laser Diode | Package Type: | Surface Mount, Standard Package |
|---|---|---|---|
| Wavelength: | 915nm | Output Power: | 10 |
| Slope Efficiency: | 1.0W/A | Emitter Size: | 94μm |
| Threshold Current: | 0.5A | Power Conversion Efficiency: | 58% |
| Highlight: | 94um Laser Diode Chip,high power laser diode chip,1.0W/A Laser Diode Chip |
||
94μm Laser Diode Chip Slope Efficiency 1.0W/A Wavelength 915nm

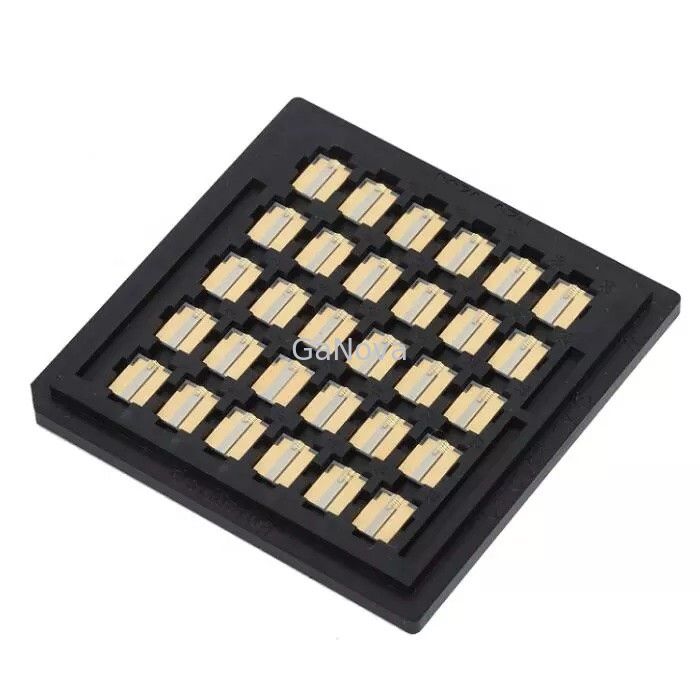

915nm 10W COS Diode Laser Chip On Submount Design
For low power consumption it is essential that the output from the laser diode (LD) is efficiently coupled to the optical waveguide, and there are several approaches reported in the literature, such as an evanescent coupling and butt-joint coupling, with and without spot-size converters (SSC).
However, stable lasing operation at high operating temperatures is problematic since the light sources are typically integrated on dielectric materials, which have poor heat dissipation and lead to a degradation in the laser performance. Photodetectors (PDs) are also key components for on-chip integration technologies, and both compound material systems and germanium (Ge) have been successfully employed as detector materials.
|
Optical
|
|
|
Center Wavelength
|
915nm
|
|
Output Power
|
10W
|
|
Spectral Width FWHM
|
≤6nm
|
|
Slope Efficiency
|
1.0W/A
|
|
Fast Axis Divergence
|
60Deg
|
|
Slow Axis Divergence
|
11Deg
|
|
Polarization Mode
|
TE
|
|
Emitter Size
|
94um
|
|
Electrical
|
|
|
Threshold Current
|
0.5A
|
|
Operating Current
|
12A
|
|
Operating Voltage
|
1.65V
|
|
Power Conversion Efficiency
|
58%
|
|
Thermal
|
|
|
Operating Temperature
|
15-55℃
|
|
Storage Temperature
|
-30-70℃
|
|
Wavelength Temp. Coefficient
|
0.3nm/℃
|
