Product Details:
|
| Type: | Laser Diode | Application: | Laser Printing |
|---|---|---|---|
| Package Type: | Surface Mount, Standard Package | Operating Temperature: | 15-55℃ |
| Wavelength: | 915nm | Output Power: | 10 |
| Slope Efficiency: | 1.0W/A | Emitter Size: | 94μm |
| Threshold Current: | 0.5A | Power Conversion Efficiency: | 58% |
| Highlight: | Laser Printing Diode Chip,10w laser diode chip,Diode Chip 10W |
||
Laser Printing Laser Diode Chip Operating Temperature 15-55℃ Output Power 10W

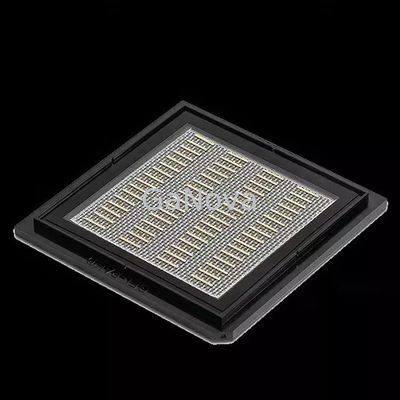

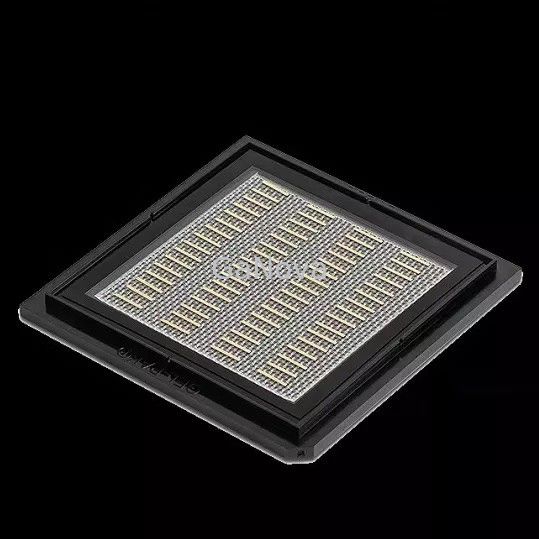

915nm 10W COS Diode Laser Chip On Submount Design
Recent progress in high performance silicon large scale integration (Si-LSI) has faced major challenges from limitations in the bandwidth of electrical interconnects due to signal delay, and also from heating due to the large density of electrical interconnects.
Of the potential solutions to overcome these issues optical interconnects are of considerable interest since they feature very large bandwidths that could ultimately lead to more efficient ways of routing information within LSI circuits.
|
Optical
|
|
|
Center Wavelength
|
915nm
|
|
Output Power
|
10W
|
|
Spectral Width FWHM
|
≤6nm
|
|
Slope Efficiency
|
1.0W/A
|
|
Fast Axis Divergence
|
60Deg
|
|
Slow Axis Divergence
|
11Deg
|
|
Polarization Mode
|
TE
|
|
Emitter Size
|
94um
|
|
Electrical
|
|
|
Threshold Current
|
0.5A
|
|
Operating Current
|
12A
|
|
Operating Voltage
|
1.65V
|
|
Power Conversion Efficiency
|
58%
|
|
Thermal
|
|
|
Operating Temperature
|
15-55℃
|
|
Storage Temperature
|
-30-70℃
|
|
Wavelength Temp. Coefficient
|
0.3nm/℃
|
