Product Details:
|
| Crystal Form: | 4H-N/S | Product Name: | 2inch DiameterSilicon Carbide (SiC)Substrate Specification |
|---|---|---|---|
| Diameter: | 50.8mm±0.38mm | Secondary Flat Orientation: | Silicon Face Up:90°CW. From Prime Flat±5.0° |
| Primary Flat Length: | 15.9mm±1.7mm 8.0 Mm±1.7 Mm | Secondary Flat Length: | No Secondary Flat |
| Orthogonal Misorientation: | ±5.0° | Thickness A: | 260μm±25μm |
| Highlight: | P Level SiC Substrate,Microwave Devices silicon carbide substrate,2 Inch SiC Substrate |
||
P-Level 4H-N/SI<0001>260um±25um 2-Inch SiC Substrate For Power Devices And Microwave Devices

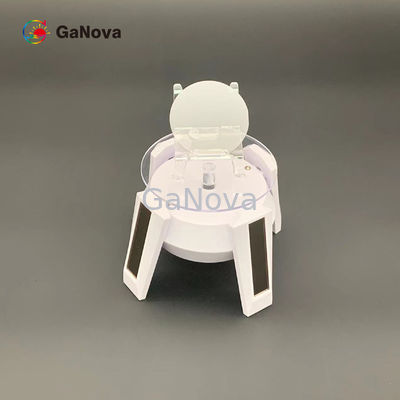

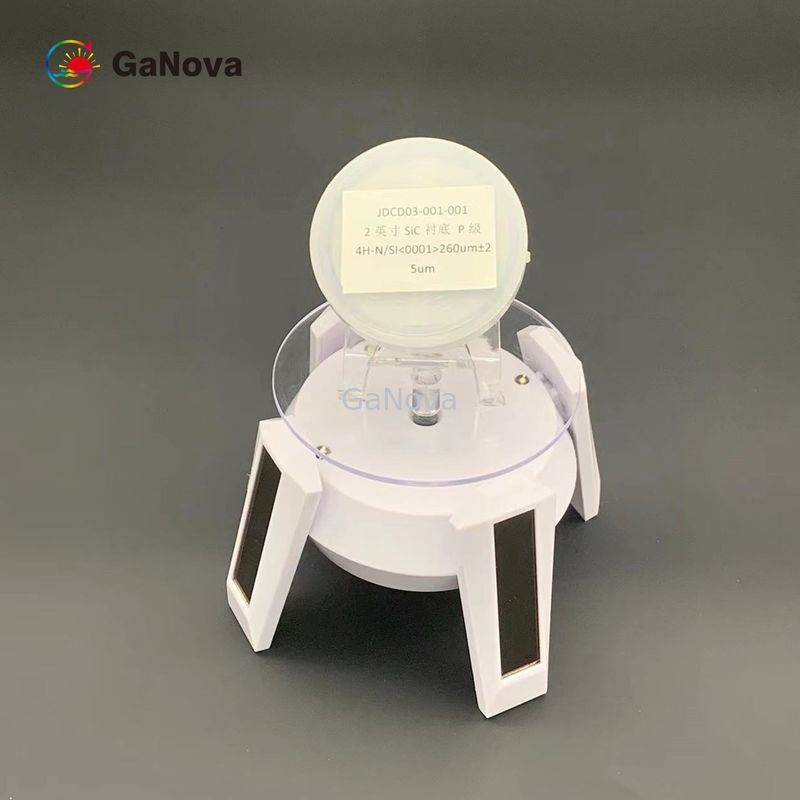

JDCD03-001-001 2-inch SiC substrate P-level 4H-N/SI<0001>260μm±25μm for power devices and microwave devices
Overview
Key features
Optimizes targeted performance and total cost of ownership for next generation power electronics devices
Large diameter wafers for improved economies of scale in semiconductor manufacturing
Range of tolerance levels to meet specific device fabrication needs
High crystal quality
Low defect densities
| 2inch diameterSilicon Carbide (SiC)Substrate Specification | ||
| Grade | Production Grade(P Grade) | |
| Dimeter | 50.8mm±0.38mm | |
| Thickness | 260μm±25μm | |
| Wafer Orientation | On axis: <0001>±0.5° for 4H-N/4H-SI, Off axis: 4.0° toward <1120 > ±0.5° for 4H-N/4H-SI | |
| Micropipe Density | ≤5cm-² | |
| Resistivity | 4H-N | 0.015~0.028Ω·cm |
| 4H-SI | ＞1E5Ω·cm | |
| Primary Flat Orientation | {10-10}±5.0° | |
| Primary Flat Length | 15.9mm±1.7mm | |
| Primary Flat Length | 8.0 mm±1.7 mm | |
| Secondary Flat Orientation | Silicon face up:90°CW. from Prime flat±5.0° | |
| Edge Exclusion | 1mm | |
| TTV/Bow/Warp | ≤15μm/≤25μm/≤25μm | |
| Roughness | Silicon face | CMP Ra≤0.5nm |
| Carbon face | Polish Ra≤1.0nm | |
| Edge Cracks By High Intensity Light | None | |
| Hex Plates By High Intensity Light | Cumulative area≤1% | |
| Polytype Areas By High Intensity Light | None | |
| Silicon Surface Scratches By high Intensity Light | 3 scratches to 1 x wafer diameter cumulative length | |
| Edge Chips High By Intensity Light light | None | |
| Silicon Surface Contamination By High Intensity | None | |

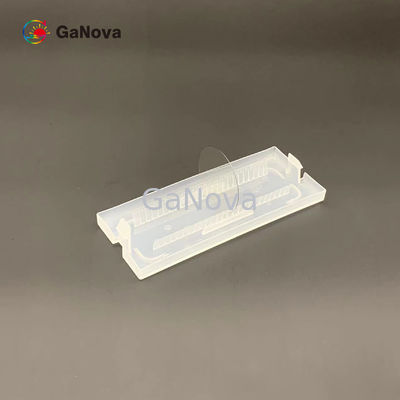

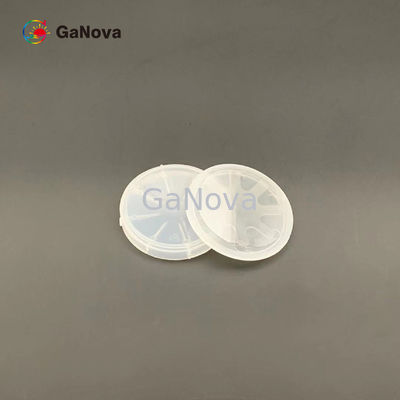

| Packaging | Multi-wafer Cassette or Single Wafer Container | |
Remark: 3mm edge exclusion is used for the items marked with a.
