Product Details:
|
| Product Name: | Sic Epitaxial Wafer | Crystal Form: | 4H |
|---|---|---|---|
| Diameter: | 150.0mm+0.0/-0.2mm | Surface Orientation: | {0001}±0.2° |
| Length Of Main Reference Edge: | Notch | Length Of Secondary Reference Edge: | No Sub-reference Edges |
| Highlight: | 4H Semi Insulating Substrate,P Level silicon carbide substrate,6inch Semi Insulating Substrate |
||
P-Level SI-Type 6inch 4H-SiC Semi insulating substrate 350.0±25.0μm MPD≤0.5/cm2 Resistivity≥1E9Ω·cm
6inch 4H-SiC substrate P-level SI-Type 350.0±25.0μm MPD≤0.5/cm2 Resistivity≥1E9Ω·cm for power and microwave devices
Overview
SiC has the following properties:
SiC is used for the fabrication of very high-voltage and high-power devices such as diodes, power transistors, and high power microwave devices. Compared to conventional Si-devices, SiC-based power devices have faster switching speed higher voltages, lower parasitic resistances, smaller size, less cooling required due to high-temperature capability.
|

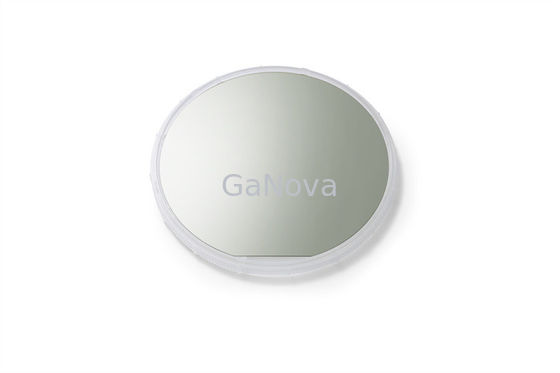

6inch 4H-SiC Semi insulating substrate |
|||
| Product performance | P | D | |
| Crystal form | 4H | ||
| Polytypic | Not allow | Area≤5% | |
| Micropipe Densitya | ≤0.5/cm2 | ≤5/cm2 | |
| Six square empty | Not allow | Area≤5% | |
| Hexagon surface hybrid crystal | Not allow | ||
| wrappage a | Area≤0.05% | N/A | |
| Resistivity | ≥1E9Ω·cm | ≥1E5Ω·cm | |
|
(0004)XRD Half height width of rocking curve(FWHM) |
≤45 Arcsecond |
N/A |
|
| Diameter | 150.0mm+0.0/-0.2mm | ||
| Surface orientation | {0001}±0.2° | ||
| Length of main reference edge | Notch | ||
| Length of secondary reference edge | No sub-reference edges | ||
| Notch orientation | <1-100>±1° | ||
| Notch angle | 90° +5°/-1° | ||
| Notch degree of depth | From the edge 1mm +0.25mm/-0mm | ||
| surface preparation | C-Face: Mirror Finish, Si-Face: Chemical Mechanical Polishing (CMP) | ||
| The edge of the wafer | wafer edge chamfer | ||
|
Surface roughness(10μm×10μm)
|
Si face Ra≤0.2 nm C-Face Ra≤0.5 nm
|
||
| thickness |
350.0μm±25.0μm
|
||
| LTV(10mm×10mm)a |
≤2µm
|
≤3µm
|
|
| TTVa |
≤6µm
|
≤10µm
|
|
| Bowa |
≤25µm
|
≤40µm
|
|
| Warpa |
≤40µm
|
≤60µm
|
|
| Broken edge / gap | Collapse edges of a length and a width of ≥0.5mm are not allowed | ≤2 and each length and width of ≤1.0mm | |
| scratcha | ≤5And the total length is≤ 0.5 times the diameter | ≤5 ,And the total length is≤1.5 times the diameter | |
| flaw | not allow | ||
| pollution | not allow | ||
| Edge removal |
3mm |
||
Remark: 3mm edge exclusion is used for the items marked with a.
