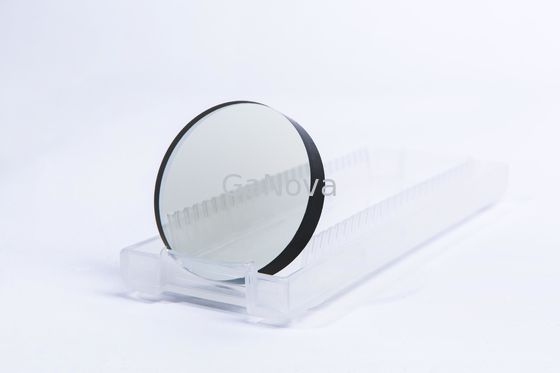

JDZJ01-001-005 SiC Seed Crystal S Grade 6" S Grade φ153±0.5mm

JDZJ01-001-005 SiC Seed Crystal S Grade 6" S Grade φ153±0.5mm
JDZJ01-001-005 SiC Seed Crystal S Grade 6" S Grade φ153±0.5mm

Large Image :  JDZJ01-001-005 SiC Seed Crystal S Grade 6" S Grade φ153±0.5mm

Product Details:
Model Number: JDZJ01-001-005
Payment & Shipping Terms:
Packaging Details: Packaged in a cleanroom in single seed container
Delivery Time: 3-4 week days

JDZJ01-001-005 SiC Seed Crystal S Grade 6" S Grade φ153±0.5mm

Description
Warp(μm): ≤50μm Diameter: 153±0.5mm
Thickness: 500±50mm BoW: ≤50μm
Crystal Orientation: 4°off-axis Toward<11-20>±0.5° Main Positioning Edge Lenght: 18.0±2.0
Highlight:

S Grade SiC Seed Crystal

,

φ153±0.5mm SiC Seed Crystal

,

6” SiC Seed Crystal

SiC seed crystal S grade 6" S grade φ153±0.5mm



SiC is an excellent thermal conductor. Heat will flow more readily through SiC than other semiconductor materials. In fact, at room temperature, SiC has a higher thermal conductivity than any metal. This property enables SiC devices to operate at extremely high power levels and still dissipate the large amounts of excess heat generated.



Grade S level S level
Seed crystal specifications 6”SiC 6”SiC
Diameter(mm) 153±0.5 155±0.5
Thickness(μm) 500±50 500±50
BoW(μm) ≤50 ≤50
Warp(μm) ≤50 ≤50
Crystal orientation 4°off-axis toward<11-20>±0.5° 4°off-axis toward<11-20>±0.5°
Main positioning edge lenght 18.0±2.0 18.0±2.0
Subposition dege length 8.0±2.0 8.0±2.0
Positioning edge direction

Si face:rotate clockwise along the main positioning side:90°±5°

C face:rotate counterclockwise along the main positioning side:90°±5°

Si face:rotate clockwise along the main positioning side:90°±5°

C face:rotate counterclockwise along the main positioning side:90°±5°

Resistivity 0.01~0.04Ω·cm 0.01~0.04Ω·cm
Surface roughness DSP,C face Ra≤1.0nm DSP,C face Ra≤1.0nm
Single crystal zone diameter(mm) ≥150mm ≥152mm
Microtubule density ≤0.5/cm2 ≤0.5/cm2
Collapse side ≤2mm ≤2mm
Packaging method Single piece packing Single piece packing
Remark:Single crystal zone refers to the area without crack and polytype.
