Product Details:
|
| Crystal Form: | 4H | Product Name: | 2inch DiameterSilicon Carbide (SiC)Substrate Specification |
|---|---|---|---|
| Diameter: | 50.8mm±0.38mm | Primary Flat Orientation: | {10-10}±5.0° |
| Primary Flat Length: | 47.5mm ± 1.5mm | Secondary Flat Orientation: | Silicon Face Up:90°CW. From Prime Flat±5.0° |
| Micropipe Density: | ≤5cm-² | Thickness A: | 260μm±25μm |
| Highlight: | 2 Inch SiC Substrate,Demanding Power Electronics 2 inch wafer,SiC Substrate 350um |
||
P-Level 2-Inch SiC Substrate 4H-N/SI<0001>260μm±25μm For Demanding Power Electronics
JDCD03-001-001 2-inch SiC substrate P-level 4H-N/SI<0001>260μm±25μm for power devices and microwave devices
Overview
High crystal quality for demanding power electronics
As transportation, energy and industrial markets evolve, demand for reliable, high performance power electronics continues to grow. To meet the needs for improved semiconductor performance, device manufacturers are looking to wide bandgap semiconductor materials, such as our 4H SiC Prime Grade portfolio of 4H n -type silicon carbide (SiC) wafers.
| 2inch diameterSilicon Carbide (SiC)Substrate Specification | ||
| Grade | Production Grade(P Grade) | |
| Dimeter | 50.8mm±0.38mm | |
| Thickness | 260μm±25μm | |
| Wafer Orientation | On axis: <0001>±0.5° for 4H-N/4H-SI, Off axis: 4.0° toward <1120 > ±0.5° for 4H-N/4H-SI | |
| Micropipe Density | ≤5cm-² | |
| Resistivity | 4H-N | 0.015~0.028Ω·cm |
| 4H-SI | ＞1E5Ω·cm | |
| Primary Flat Orientation | {10-10}±5.0° | |
| Primary Flat Length | 15.9mm±1.7mm | |
| Primary Flat Length | 8.0 mm±1.7 mm | |
| Secondary Flat Orientation | Silicon face up:90°CW. from Prime flat±5.0° | |
| Edge Exclusion | 1mm | |
| TTV/Bow/Warp | ≤15μm/≤25μm/≤25μm | |
| Roughness | Silicon face | CMP Ra≤0.5nm |
| Carbon face | Polish Ra≤1.0nm | |
| Edge Cracks By High Intensity Light | None | |
| Hex Plates By High Intensity Light | Cumulative area≤1% | |
| Polytype Areas By High Intensity Light | None | |
| Silicon Surface Scratches By high Intensity Light | 3 scratches to 1 x wafer diameter cumulative length | |
| Edge Chips High By Intensity Light light | None | |
| Silicon Surface Contamination By High Intensity | None | |

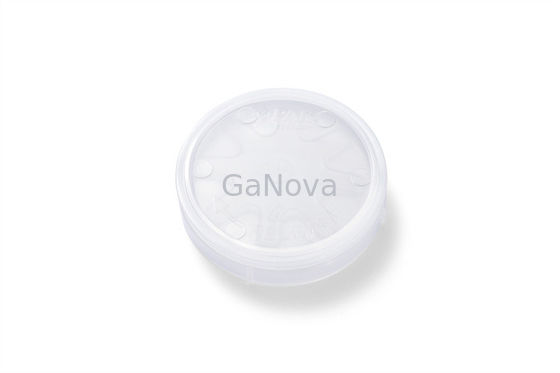

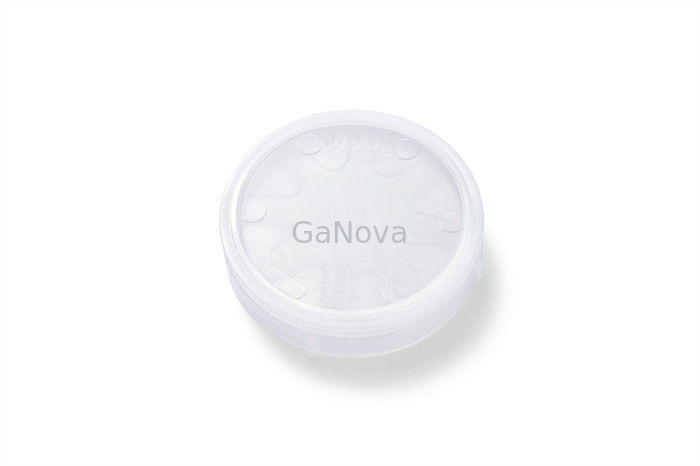

| Packaging | Multi-wafer Cassette or Single Wafer Container | |
Remark: 3mm edge exclusion is used for the items marked with a.
