Product Details:
|
| Crystal Form: | 4H | Product Name: | Sic Epitaxial Wafer |
|---|---|---|---|
| Diameter: | 150.0mm +0mm/-0.2mm | Surface Orientation: | Off-Axis:4°toward <11-20>±0.5 ° |
| Primary Flat Length: | 47.5mm ± 1.5mm | Secondary Flat Length: | No Secondary Flat |
| Orthogonal Misorientation: | ±5.0° | Thickness A: | 350.0μm± 25.0μm |
| Highlight: | P-MOS Grade SiC Epi Wafer,150.0mm SiC Substrate,SiC Epi Wafer P Level |
||

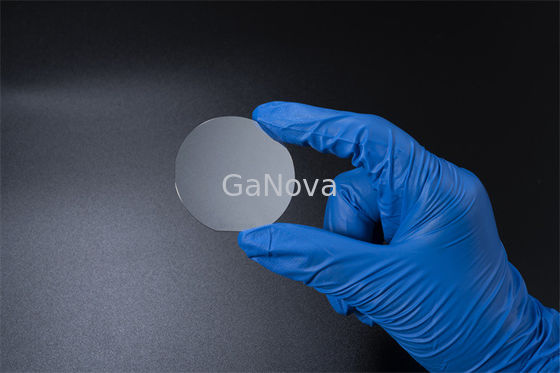

P-MOS Grade 2-Inch SiC Substrate P-Level P-SBD Grade D Grade 150.0 mm +0mm/-0.2mm
JDCD03-001-001 2-inch SiC substrate P-level 4H-N/SI<0001>260μm±25μm for power devices and microwave devices
Overview
At the system level, this results in highly compact solutions with vastly improved energy efficiency at reduced cost. The rapidly growing list of current and projected commercial applications utilizing SiC technologies includes switching power supplies, inverters for solar and windmill energy generation, industrial motor drives, HEV and EV vehicles, and smart-grid power switching.
|
Property |
P-MOS Grade | P-SBD Grade | D Grade |
| Crystal Form | 4H | ||
| Polytype | None Permitted | Area≤5% | |
| (MPD) a | ≤0.2 /cm2 | ≤0.5 /cm2 | ≤5 /cm2 |
| Hex Plates | None Permitted | Area≤5% | |
| Hexagonal Polycrystal | None Permitted | ||
| Inclusions a | Area≤0.05% | Area≤0.05% | N/A |
| Resistivity | 0.015Ω•cm—0.025Ω•cm | 0.015Ω•cm—0.025Ω•cm | 0.014Ω•cm—0.028Ω•cm |
| (EPD)a | ≤4000/cm2 | ≤8000/cm2 | N/A |
| (TED)a | ≤3000/cm2 | ≤6000/cm2 | N/A |
| (BPD)a | ≤1000/cm2 | ≤2000/cm2 | N/A |
| (TSD)a | ≤600/cm2 | ≤1000/cm2 | N/A |
| Stacking Fault | ≤0.5% Area | ≤1% Area | N/A |
|
Surface Metal Contamination |
(Al, Cr, Fe, Ni, Cu, Zn, Pb, Na, K, Ti, Ca ,V, Mn) ≤1E11 cm-2 |
||
| Diameter | 150.0 mm +0mm/-0.2mm | ||
| Surface Orientation | Off-Axis:4°toward <11-20>±0.5 ° | ||
| Primary Flat Length | 47.5 mm ± 1.5 mm | ||
| Secondary Flat Length | No Secondary Flat | ||
| Primary Flat Orientation | Parallel to<11-20>±1° | ||
| Secondary Flat Orientation | N/A | ||
| Orthogonal Misorientation | ±5.0° | ||
| Surface Finish | C-Face:Optical Polish,Si-Face:CMP | ||
| Wafer Edge | Beveling | ||
|
Surface Roughness (10μm×10μm) |
Si Face Ra≤0.20 nm ； C Face Ra≤0.50 nm | ||
| Thickness a | 350.0μm± 25.0 μm | ||
| LTV(10mm×10mm)a | ≤2μm | ≤3μm | |
| (TTV)a | ≤6μm | ≤10μm | |
| (BOW) a | ≤15μm | ≤25μm | ≤40μm |
| (Warp) a | ≤25μm | ≤40μm | ≤60μm |
| Chips/Indents | None Permitted ≥0.5mm Width and Depth | Qty.2 ≤1.0 mm Width and Depth | |
|
Scratches a (Si Face,CS8520) |
≤5 and Cumulative Length≤0.5×Wafer Diameter |
≤5 and Cumulative Length≤1.5×Wafer Diameter |
|
| TUA(2mm*2mm) | ≥98% | ≥95% | N/A |
| Cracks | None Permitted | ||
| Contamination | None Permitted | ||
| Property | P-MOS Grade | P-SBD Grade | D Grade |
| Edge Exclusion | 3mm | ||
Remark: 3mm edge exclusion is used for the items marked with a.
