| Product Name: | Sic Epitaxial Wafer | Diameter: | 150.0mm +0mm/-0.2mm |
|---|---|---|---|
| Surface Orientation: | Off-Axis:4°toward <11-20>±0.5 ° | Primary Flat Length: | 47.5mm ± 1.5mm |
| Secondary Flat Length: | No Secondary Flat | Primary Flat Orientation: | Parallel To<11-20>±1° |
| Orthogonal Misorientation: | ±5.0° | Edge Exclusion: | 3mm |
| Highlight: | 446mm SiC Epitaxial Wafer,4 H epitaxial silicon wafer,UKAS SiC Epitaxial Wafer |
||

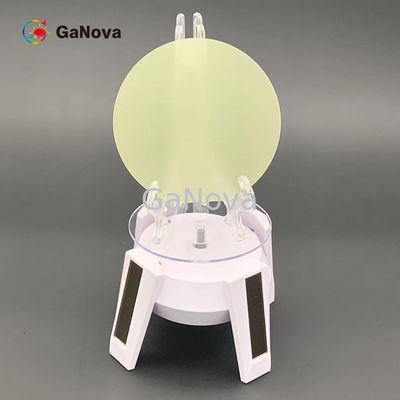

47.5 mm ± 1.5 mm SiC Epitaxial Wafer 150.0 mm +0mm/-0.2mm Parallel to<11-20>±1°
JDCD03-001-003
Overview
Currently, there are two main types of SiC wafers. The first type is the polished wafer, which is a single silicon carbide disc. It is made of high-purity SiC crystals, and can be 100mm or 150mm in diameter. It is used in high-power electronics. The second type is the epitaxial crystalline silicon carbide wafer. This type of wafer is created by adding layers of single silicon carbide crystals to a surface. This method requires precise control of the thickness of the material, and is referred to as n-type epitaxy.
|
Property |
P-MOS Grade | P-SBD Grade | D Grade |
| Crystal Form | 4H | ||
| Polytype | None Permitted | Area≤5% | |
| (MPD) a | ≤0.2 /cm2 | ≤0.5 /cm2 | ≤5 /cm2 |
| Hex Plates | None Permitted | Area≤5% | |
| Hexagonal Polycrystal | None Permitted | ||
| Inclusions a | Area≤0.05% | Area≤0.05% | N/A |
| Resistivity | 0.015Ω•cm—0.025Ω•cm | 0.015Ω•cm—0.025Ω•cm | 0.014Ω•cm—0.028Ω•cm |
| (EPD)a | ≤4000/cm2 | ≤8000/cm2 | N/A |
| (TED)a | ≤3000/cm2 | ≤6000/cm2 | N/A |
| (BPD)a | ≤1000/cm2 | ≤2000/cm2 | N/A |
| (TSD)a | ≤600/cm2 | ≤1000/cm2 | N/A |
| Stacking Fault | ≤0.5% Area | ≤1% Area | N/A |
|
Surface Metal Contamination |
(Al, Cr, Fe, Ni, Cu, Zn, Pb, Na, K, Ti, Ca ,V, Mn) ≤1E11 cm-2 |
||
| Diameter | 150.0 mm +0mm/-0.2mm | ||
| Surface Orientation | Off-Axis:4°toward <11-20>±0.5 ° | ||
| Primary Flat Length | 47.5 mm ± 1.5 mm | ||
| Secondary Flat Length | No Secondary Flat | ||
| Primary Flat Orientation | Parallel to<11-20>±1° | ||
| Secondary Flat Orientation | N/A | ||
| Orthogonal Misorientation | ±5.0° | ||
| Surface Finish | C-Face:Optical Polish,Si-Face:CMP | ||
| Wafer Edge | Beveling | ||
|
Surface Roughness (10μm×10μm) |
Si Face Ra≤0.20 nm ； C Face Ra≤0.50 nm | ||
| Thickness a | 350.0μm± 25.0 μm | ||
| LTV(10mm×10mm)a | ≤2μm | ≤3μm | |
| (TTV)a | ≤6μm | ≤10μm | |
| (BOW) a | ≤15μm | ≤25μm | ≤40μm |
| (Warp) a | ≤25μm | ≤40μm | ≤60μm |
| Chips/Indents | None Permitted ≥0.5mm Width and Depth | Qty.2 ≤1.0 mm Width and Depth | |
|
Scratches a (Si Face,CS8520) |
≤5 and Cumulative Length≤0.5×Wafer Diameter |
≤5 and Cumulative Length≤1.5×Wafer Diameter |
|
| TUA(2mm*2mm) | ≥98% | ≥95% | N/A |
| Cracks | None Permitted | ||
| Contamination | None Permitted | ||
| Property | P-MOS Grade | P-SBD Grade | D Grade |
| Edge Exclusion | 3mm | ||
Remark: 3mm edge exclusion is used for the items marked with a.
