Product Details:
|
| Product Name: | GaN Single Crystal Substrate | Dimensions: | 50.8 ± 1 Mm |
|---|---|---|---|
| Thickness: | 350 ±25µm | Orientation: | C Plane (0001) Off Angle Toward M-axis |
| TTV: | ≤ 10µm | BoW: | ≤ 20 μm |
| Macro Defect Density: | 0cm⁻² | Useable Area: | > 90% (edge Exclusion) |
| Highlight: | Gallium Nitride Semiconductor Wafer,C Plane gan epi wafer,Semiconductor Wafer 325um |
||

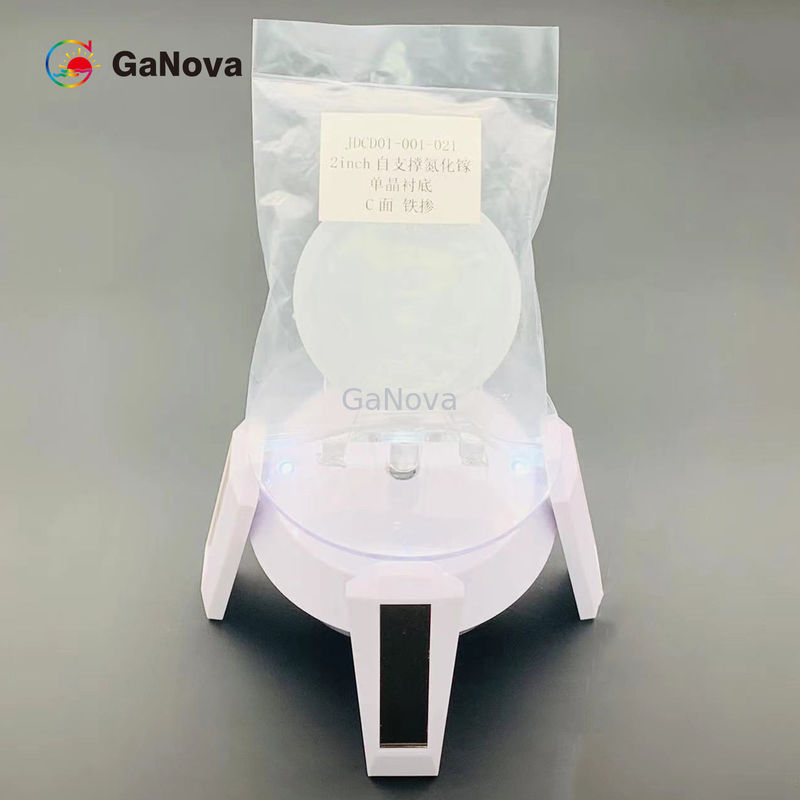

2-inch Free-standing SI-GaN Substrates
An epitaxial wafer (also called epi wafer, epi-wafer, or epiwafer) is a wafer of semiconducting material made by epitaxial growth (epitaxy) for use in photonics, microelectronics, spintronics, or photovoltaics.
Thin Epi wafers are commonly used for leading edge MOS devices. Thick Epi or Multi-layered epitaxial wafers are used for the devices mainly to control electric power, and they are contributing to improving the efficiency of energy consumption.
| 2-inch Free-standing SI-GaN Substrates | ||||||||
| Excellent level (S) | Production level (A) | Research level (B) | Dummy level (C) |
Note: (1) Useable area: edge and macro defects exclusion (2) 3 points: the miscut angles of positions (2, 4, 5) are 0.35 ± 0.15o |
||||
| S-1 | S-2 | A-1 | A-2 | |||||
| Dimension | 50.8 ± 1 mm | |||||||
| Thickness | 350 ± 25 μm | |||||||
| Orientation flat | (1-100) ± 0.5o, 16 ± 1 mm | |||||||
| Secondary orientation flat | (11-20) ± 3o, 8 ± 1 mm | |||||||
| Resistivity (300K) | > 1 x 106 Ω·cm for Semi-insulating (Fe-doped; GaN-FS-C-SI-C50) | |||||||
| TTV | ≤ 15 μm | |||||||
| BOW | ≤ 20 μm | ≤ 40 μm | ||||||
| Ga face surface roughness |
< 0.2 nm (polished) or < 0.3 nm (polished and surface treatment for epitaxy) |
|||||||
| N face surface roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||||||
| Package | Packaged in a cleanroom in single wafer container | |||||||
| Useable area | > 90% | >80% | >70% | |||||
| Dislocation density | <9.9x105 cm-2 | <3x106 cm-2 | <9.9x105 cm-2 | <3x106 cm-2 | <3x106 cm-2 | |||
| Orientation:C plane (0001) off angle toward M-axis |
0.35 ± 0.15o (3 points) |
0.35 ± 0.15o (3 points) |
0.35 ± 0.15o (3 points) |
|||||
| Macro defect density (hole) | 0 cm-2 | < 0.3 cm-2 | < 1 cm-2 | |||||
| Max size of macro defects | < 700 μm | < 2000 μm | < 4000 μm | |||||
* National standards of China (GB/T32282-2015)
