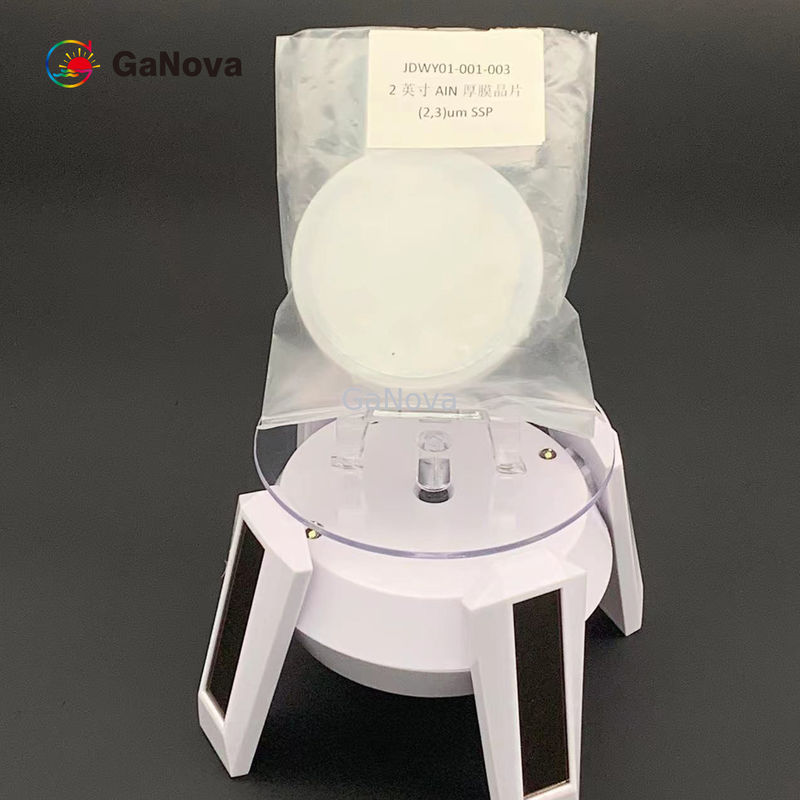

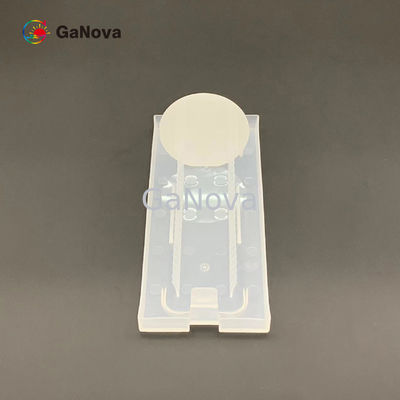

2 Inch Semi Insulating AIN Sapphire Single Crystal Wafer C Plane

2 Inch Semi Insulating AIN Sapphire Single Crystal Wafer C Plane
2 Inch Semi Insulating AIN Sapphire Single Crystal Wafer C Plane 2 Inch Semi Insulating AIN Sapphire Single Crystal Wafer C Plane

Large Image :  2 Inch Semi Insulating AIN Sapphire Single Crystal Wafer C Plane

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDWY01-001-003
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

2 Inch Semi Insulating AIN Sapphire Single Crystal Wafer C Plane

Description
Substrate: Sapphire(Single Or Double Side Polished) Product Name: Aluminum Nitride Wafer
Thickness: [1,2)μm,[2,3)μm,[3,4)μm,[4,5)μm Orientation: C-plane (0001)±1o
Conduction Type: Semi-Insulating Edge Exclusion Zone: <2mm
Highlight:

Sapphire Single Crystal Wafer

,

polished sapphire wafers

,

Single Crystal Wafer C Plane

2 Inch Semi-Insulating AIN On Sapphire Wafer C-Plane (0001)±1o

2 Inch Thick Film (2,3)μm AIN On Sapphire Wafer,SSP,XRD FWHM Of(002)≤100arcsec(102) ≤550arcsec UV Disinfection LED Chip



Overview

A major use of AlN-on-sapphire are ultraviolet (UV) LEDs. Some of the most powerful applications include irradiating hospital rooms and foundry cleanrooms, since AlN-on-sapphire LEDs disinfect instruments and can purify air and water of germs and bacteria without using chemicals.





Specification

Item AlN-T-C-U-C50
Dimensions φ50.8 mm±0.1 mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 mm
Substrate Sapphire(Single or Double Side Polished)
Thickness 1~5μm
Orientation

C-plane (0001)±1o

Conduction Type Semi-Insulating
Crystalline Quality Thickness XRD FWHM of(002) XRD FWHM of(102)
  [1,2)μm ≤80arcsec ≤650arcsec
  [2,3)μm ≤100arcsec ≤550arcsec
  [3,4)μm ≤120arcsec ≤450arcsec
  [4,5)μm ≤160arcsec ≤400arcsec
Edge Exclusion Zone



<2mm

Surface Roughness Ra<1.5nm(10*10μm)
Package Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.





About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
