Product Details:
|
| Appearance: | Circular Belt Positioning Edge | Product Name: | Aluminum Nitride Wafer |
|---|---|---|---|
| Diameter(mm): | 25.4±0.5 | Thickness(μm): | 400±50 |
| Crystal Form: | 2H | Polytype: | {0001}±0.5° |
| Highlight: | 25.4mm AlN Single Crystal,2H aluminum nitride substrate,1inch AlN Single Crystal |
||

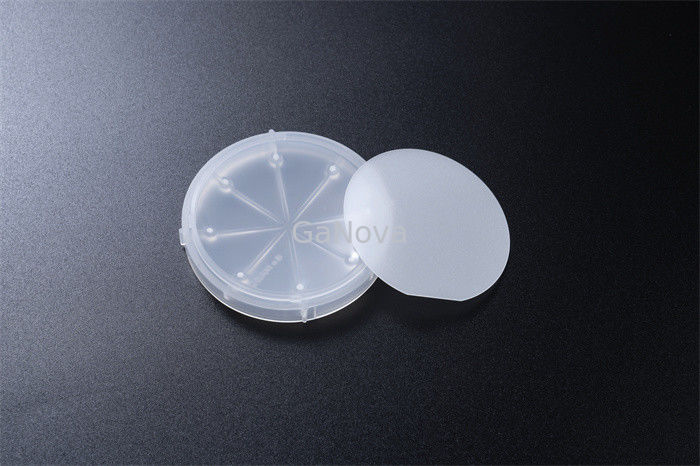

25.4±0.5mm 1inch AlN Single Crystal 400±50μM S/P/R Grade {0001}±0.5°
JDCD02-001-002 1inch AlN single crystal 400±50μm S/P/R grade
Aluminum Nitride is a highly desirable material in specific applications where high thermal conductivity, electrical insulation, and/or mechanical strength is required.
The material is a good electrical insulator with excellent thermal conductivity. Its high insulating properties make it an excellent choice for a variety of applications. A wide variety of products can be made from aluminum nitride.
This is the most common use for aluminum nitride. It is an important material in the aerospace industry. However, there are some limitations associated with it. It is unstable at high temperatures and in some environments.
| 1inch Aluminum nitride single crystal substrate | |||
| Crystal Specifications | Parameter value | ||
| Diameter(mm) | 25.4±0.5 | ||
| Thickness(μm) | 400±50 | ||
| Crystal Form | 2H | ||
| Polytype | {0001}±0.5° | ||
| Surface polishing | Aluminum surface: chemical polishing (double polishing can be customized) | ||
| Roughness |
Al face:≤0.5nm N face(back):≤1.2μm |
||
| appearance | Circular belt positioning edge | ||
| Quality grade | S grade(Super) | P grade(Prouduction) | R grade(Research) |
| HRXRD Half height width@{0002}(arcsec) | ≤150 | ≤300 | ≤500 |
| HRXRD Half height width@{10-12}(arcsec) | ≤100 | ≤200 | ≤400 |
| absorption coefficient@265nm(cm-1) | ≤50 | ≤70 | ≤100 |
| Edge Exclusion(mm) | 1 | 1 | 1 |
| Indents | / | / | / |
| Chips | / | / | ≤3 Cumulative ≤1.0mm |
| TUA | ≥90% | ||
| Main positioning edge orientation | {10-10}±5.0° | ||
| Orientation of secondary locating surface |
Al face:Rotate clockwise in the direction of the main positioning edge90°±5° N face:Rotate counterclockwise in the direction of the main positioning edge90°±5° |
||
| TTV(μm) | ≤30 | ||
| Warp(μm) | ≤30 | ||
| Bow(μm) | ≤30 | ||
| Cracks | No, naked eye, strong light | ||
| Contamination | No, naked eye, radiation | ||
| Laser coding | N face,Parallel to the main locating edge | ||
| Package | Monolithic wafer box | ||
