JDWY01-001-002 2 Inch Thick Film (1,2)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤80arcsec(102) ≤650arcsec

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

JDWY01-001-002 2 Inch Thick Film (1,2)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤80arcsec(102) ≤650arcsec

JDWY01-001-002 2 Inch Thick Film (1,2)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤80arcsec(102) ≤650arcsec
JDWY01-001-002 2 Inch Thick Film (1,2)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤80arcsec(102) ≤650arcsec

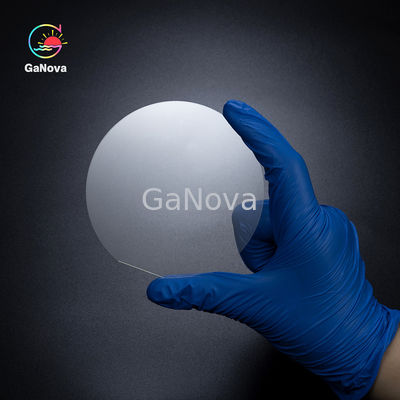

Large Image :  JDWY01-001-002 2 Inch Thick Film (1,2)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤80arcsec(102) ≤650arcsec

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDWY01-001-002
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

JDWY01-001-002 2 Inch Thick Film (1,2)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤80arcsec(102) ≤650arcsec

Description
Thickness: [1,2)μm,[2,3)μm,[3,4)μm,[4,5)μm Orientation: C-plane (0001)±1o
Conduction Type: Semi-Insulating Edge Exclusion Zone: <2mm
Surface Roughness: Ra<1.5nm(10*10μm) Product Name: Aluminum Nitride Wafer
XRD FWHM Of(002): ≤80arcsec, ≤100arcsec, ≤120arcsec, ≤160arcsec XRD FWHM Of(102): ≤650arcsec, ≤550arcsec, ≤450arcsec, ≤400arcsec

2 inch thick film (1,2)um AIN on sapphire wafer,DSP,XRD FWHM of(002)≤80arcsec(102) ≤650arcsec UV disinfection, LED chip



A thin film of aluminum nitride is a form of semiconductor material. It is highly conductive and can withstand high temperatures. It is also resistant to electromagnets and has a high boiling point. As a result, it is commonly used in mobile phones and other electronics. However, it is not advisable to process Aluminum Nitride on Silicon Wafers without proper annealing.





Item AlN-T-C-U-C50
Dimensions φ50.8 mm±0.1 mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 mm
Substrate Sapphire(Single or Double Side Polished)
Thickness 1~5μm
Orientation

C-plane (0001)±1o

Conduction Type Semi-Insulating
Crystalline Quality Thickness XRD FWHM of(002) XRD FWHM of(102)
  [1,2)μm ≤80arcsec ≤650arcsec
  [2,3)μm ≤100arcsec ≤550arcsec
  [3,4)μm ≤120arcsec ≤450arcsec
  [4,5)μm ≤160arcsec ≤400arcsec
Edge Exclusion Zone



<2mm

Surface Roughness Ra<1.5nm(10*10μm)
Package Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.





About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
