Product Details:
|
| Dimensions: | φ50.8 Mm±0.1 Mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 Mm | Substrate: | Sapphire(Single Or Double Side Polished) |
|---|---|---|---|
| Thickness: | [1,2)μm,[2,3)μm,[3,4)μm,[4,5)μm | Orientation: | C-plane (0001)±1o |
| Conduction Type: | Semi-Insulating | Edge Exclusion Zone: | <2mm |
| Surface Roughness: | Ra<1.5nm(10*10μm) | Product Name: | Aluminum Nitride Wafer |
| Highlight: | SSP AIN On Sapphire Wafer |
||

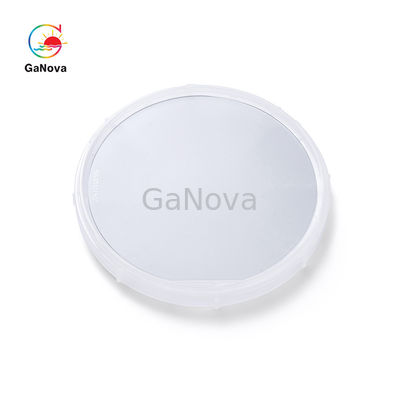

2 inch thick film (4,5)um AIN on sapphire wafer,SSP,XRD FWHM of(002)≤160arcsec(102) ≤400arcsec UV disinfection, LED chip
Sapphire is a material of a unique combination of physical, chemical and optical properties, which make it resistant to high temperature, thermal shock, water and sand erosion, and scratching.
| Item | AlN-T-C-U-C50 | ||
| Dimensions | φ50.8 mm±0.1 mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 mm | ||
| Substrate | Sapphire(Single or Double Side Polished) | ||
| Thickness | 1~5μm | ||
| Orientation |
C-plane (0001)±1o |
||
| Conduction Type | Semi-Insulating | ||
| Crystalline Quality | Thickness | XRD FWHM of(002) | XRD FWHM of(102) |
| [1,2)μm | ≤80arcsec | ≤650arcsec | |
| [2,3)μm | ≤100arcsec | ≤550arcsec | |
| [3,4)μm | ≤120arcsec | ≤450arcsec | |
| [4,5)μm | ≤160arcsec | ≤400arcsec | |
| Edge Exclusion Zone |
<2mm |
||
| Surface Roughness | Ra<1.5nm(10*10μm) | ||
| Package | Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers. | ||
