Product Details:
|
| Product Name: | AlN Single Crystal | Roughness: | Al Face:≤0.5nm N Face(back):≤1.2μm |
|---|---|---|---|
| Appearance: | Circular Belt Positioning Edge | TUA: | ≥90% |
| Main Positioning Edge Orientation: | {10-10}±5.0° | TTV(μm): | ≤30 |
| Highlight: | 1inch single crystal sapphire wafer,polished sapphire wafers 400um,AlN single crystal sapphire wafer |
||

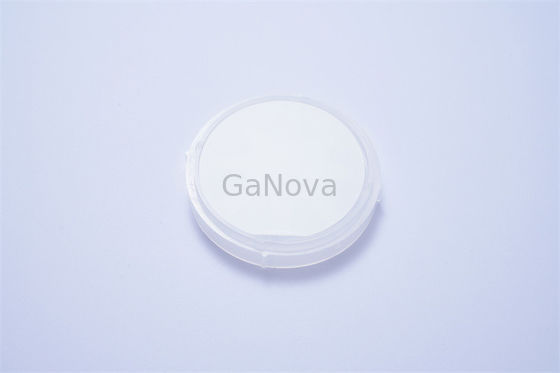

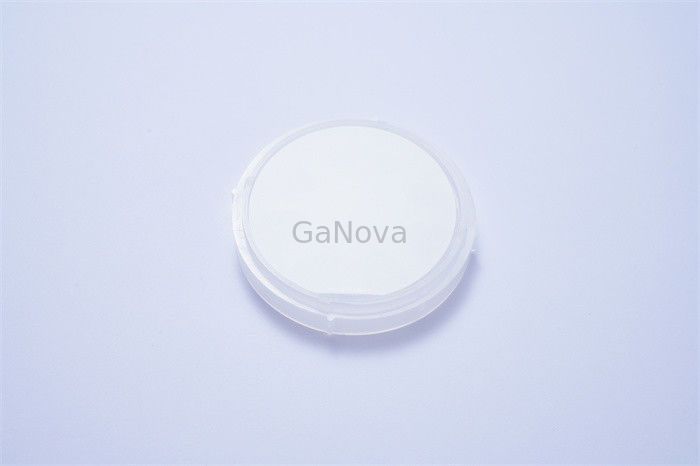

JDCD02-001-003 1inch AlN single crystal 400±50μm S/P/R grade
What is Aluminum Nitride? Aluminum Nitride (AlN) is an excellent material to use if high thermal conductivity and electrical insulation properties are required; making it an ideal material for use in thermal management and electrical applications.
| 1inch Aluminum nitride single crystal substrate | |||
| Crystal Specifications | Parameter value | ||
| Diameter(mm) | 25.4±0.5 | ||
| Thickness(μm) | 400±50 | ||
| Crystal Form | 2H | ||
| Polytype | {0001}±0.5° | ||
| Surface polishing | Aluminum surface: chemical polishing (double polishing can be customized) | ||
| Roughness |
Al face:≤0.5nm N face(back):≤1.2μm |
||
| appearance | Circular belt positioning edge | ||
| Quality grade | S grade(Super) | P grade(Prouduction) | R grade(Research) |
| HRXRD Half height width@{0002}(arcsec) | ≤150 | ≤300 | ≤500 |
| HRXRD Half height width@{10-12}(arcsec) | ≤100 | ≤200 | ≤400 |
| absorption coefficient@265nm(cm-1) | ≤50 | ≤70 | ≤100 |
| Edge Exclusion(mm) | 1 | 1 | 1 |
| Indents | / | / | / |
| Chips | / | / | ≤3 Cumulative ≤1.0mm |
| TUA | ≥90% | ||
| Main positioning edge orientation | {10-10}±5.0° | ||
| Orientation of secondary locating surface |
Al face:Rotate clockwise in the direction of the main positioning edge90°±5° N face:Rotate counterclockwise in the direction of the main positioning edge90°±5° |
||
| TTV(μm) | ≤30 | ||
| Warp(μm) | ≤30 | ||
| Bow(μm) | ≤30 | ||
| Cracks | No, naked eye, strong light | ||
| Contamination | No, naked eye, radiation | ||
| Laser coding | N face,Parallel to the main locating edge | ||
| Package | Monolithic wafer box | ||
