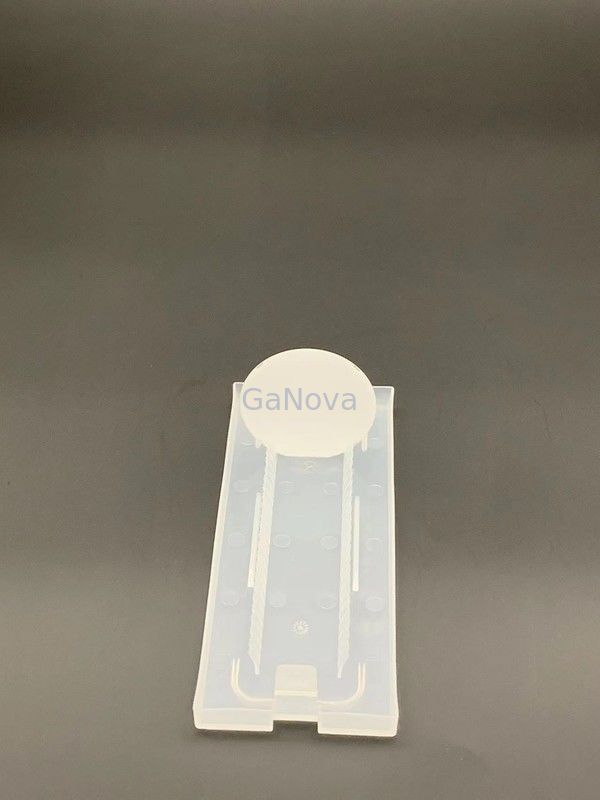

UKAS Patterned Sapphire Substrates Flat Edge Angle

UKAS Patterned Sapphire Substrates Flat Edge Angle
UKAS Patterned Sapphire Substrates Flat Edge Angle

Large Image :  UKAS Patterned Sapphire Substrates Flat Edge Angle

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD09-001-001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

UKAS Patterned Sapphire Substrates Flat Edge Angle

Description
Thickness: 430±10μm Flat Edge Width: 16±1.0mm
TTV: ≤5μm BOW: ≤-8~0μm
Front Surface Roughness: ≤0.25nm Back Surface Roughness: 0.8~1.2μm
Highlight:

UKAS Patterned Sapphire Substrates

,

al2o3 substrate 430um

,

Patterned Sapphire Substrates OEM

50.80±0.10mm Patterned Sapphire Substrates Flat Edge Angle A-Plane±0.2o

2inch Patterned Sapphire Substrates,LED Chip,Substrate Material



The efficacy enhancement of GaN-based LEDs with the patterned-sapphire substrate technique is generally attributed to the improvement in both light extraction efficiency and internal quantum efficiency. The regular patterns created on the sapphire substrate counteracts the effect of the total internal reflection at the GaN/sapphire interface.



2inch Patterned sapphire substrate
Item Al2O3





UKAS Patterned Sapphire Substrates Flat Edge Angle 0



















Dimension 50.80±0.10mm
Thickness 430±10μm
Flat edge width



16±1.0mm

Flat edge angle A-plane±0.2o
TTV ≤5μm
BOW ≤-8~0μm
Front Surface Roughness ≤0.25nm
Back Surface Roughness 0.8~1.2μm
Edge Round
Laser making back



About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
