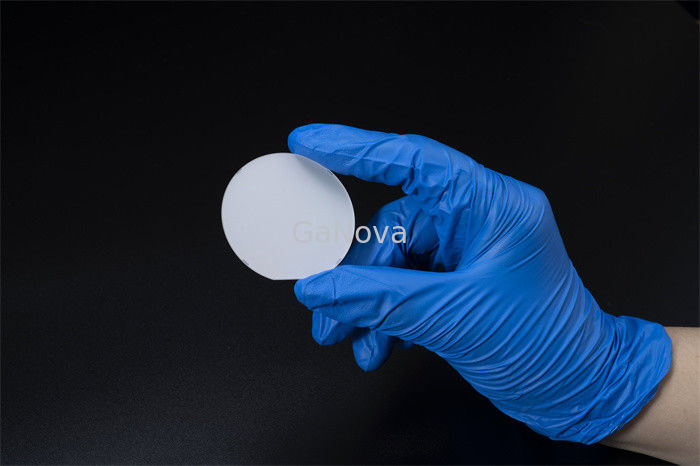

50.80mm Patterned Polished Sapphire Substrates Thickness 440um

50.80mm Patterned Polished Sapphire Substrates Thickness 440um
50.80mm Patterned Polished Sapphire Substrates Thickness 440um

Large Image :  50.80mm Patterned Polished Sapphire Substrates Thickness 440um

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD09-001-001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

50.80mm Patterned Polished Sapphire Substrates Thickness 440um

Description
Dimension: 50.80±0.10mm Thickness: 430±10μm
Flat Edge Width: 16±1.0mm TTV: ≤5μm
BOW: ≤-8~0μm Front Surface Roughness: ≤0.25nm
Highlight:

Patterned polished sapphire substrates

,

6 inch sapphire wafer

,

50.80mm polished sapphire substrates

Dimension 50.80±0.10mm Patterned Sapphire Substrates Thickness 430±10μm

2inch Patterned Sapphire Substrates,LED Chip,Substrate Material



Patterned Sapphire Substrates (PSS) is micro-patterned sapphire substrate used to for GaN based light emitting diodes(LEDS). The PSS reduces the dislocation density in the GaN layer, enhances the light extraction efficiency and increase LEDs’ brightness.



Features:

Nano-scale pattern is available
Dome, pillar or rod types are available
Custom pattern is welcome



2inch Patterned sapphire substrate
Item Al2O3





50.80mm Patterned Polished Sapphire Substrates Thickness 440um 0



















Dimension 50.80±0.10mm
Thickness 430±10μm
Flat edge width



16±1.0mm

Flat edge angle A-plane±0.2o
TTV ≤5μm
BOW ≤-8~0μm
Front Surface Roughness ≤0.25nm
Back Surface Roughness 0.8~1.2μm
Edge Round
Laser making back



About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
