1um To 5um Aluminum Nitride Substrate Single Or Double Side Polished

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

1um To 5um Aluminum Nitride Substrate Single Or Double Side Polished

1um To 5um Aluminum Nitride Substrate Single Or Double Side Polished
1um To 5um Aluminum Nitride Substrate Single Or Double Side Polished

Large Image :  1um To 5um Aluminum Nitride Substrate Single Or Double Side Polished

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDWY01-001-001
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

1um To 5um Aluminum Nitride Substrate Single Or Double Side Polished

Description

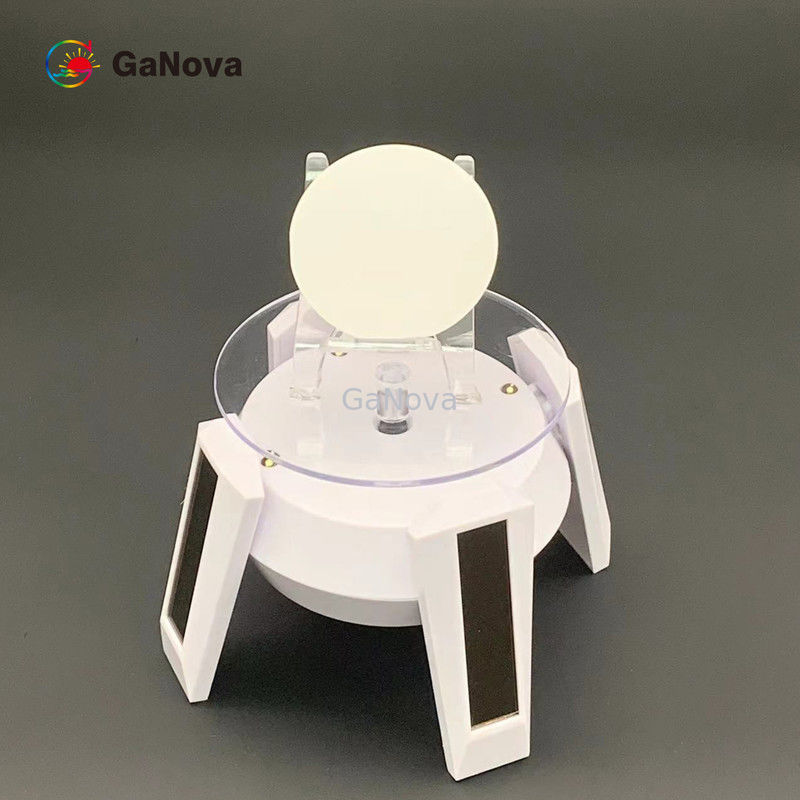

Product Name: Aluminum Nitride Wafer Dimensions: φ50.8mm±0.1mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0mm
Substrate: Sapphire(Single Or Double Side Polished) Edge Exclusion Zone: <2mm
Surface Roughness: Ra<1.5nm(10*10μm) XRD FWHM Of(002): ≤80arcsec, ≤100arcsec, ≤120arcsec, ≤160arcsec
Highlight:

1um aluminum nitride substrate

,

1um Sapphire Wafer

,

5um aluminum nitride substrate

1~5μm AIN On Sapphire Wafer Sapphire Single or Double Side Polished

2 Inch Thick Film (1,2)Um AIN On Sapphire Wafer SSP XRD FWHM Of(002)≤80arcsec(102) ≤650arcsec UV Disinfection LED Chip



Aluminum nitride was first synthesized in 1877 and has many applications in microelectronics. It is a very good electrical insulator and has high thermal conductivity. Single crystals of the material have an extremely high thermal conductivity, making them ideal for a variety of electronic applications. In addition, it is stable in hydrogen atmospheres and has high thermal conductivity.



Item AlN-T-C-U-C50
Dimensions φ50.8 mm±0.1 mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 mm
Substrate Sapphire(Single or Double Side Polished)
Thickness 1~5μm
Orientation

C-plane (0001)±1o

Conduction Type Semi-Insulating
Crystalline Quality Thickness XRD FWHM of(002) XRD FWHM of(102)
  [1,2)μm ≤80arcsec ≤650arcsec
  [2,3)μm ≤100arcsec ≤550arcsec
  [3,4)μm ≤120arcsec ≤450arcsec
  [4,5)μm ≤160arcsec ≤400arcsec
Edge Exclusion Zone



<2mm

Surface Roughness Ra<1.5nm(10*10μm)
Package Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
