Thick Film 2um 3um AIN On Sapphire Wafer 2 Inch Semi Insulating

Thick Film 2um 3um AIN On Sapphire Wafer 2 Inch Semi Insulating
Thick Film 2um 3um AIN On Sapphire Wafer 2 Inch Semi Insulating

Large Image :  Thick Film 2um 3um AIN On Sapphire Wafer 2 Inch Semi Insulating

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDWY01-001-003
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms: T/T

Thick Film 2um 3um AIN On Sapphire Wafer 2 Inch Semi Insulating

Description
Dimensions: φ50.8mm±0.1mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0mm Substrate: Sapphire(Single Or Double Side Polished)
Orientation: C-plane (0001)±1˚ Conduction Type: Semi-Insulating
Product Name: Aluminum Nitride Wafer XRD FWHM Of(102): ≤650arcsec, ≤550arcsec, ≤450arcsec, ≤400arcsec
Highlight:

Sapphire Wafer Semi Insulating

,

2um aluminum nitride substrate

,

Sapphire Wafer 2 Inch

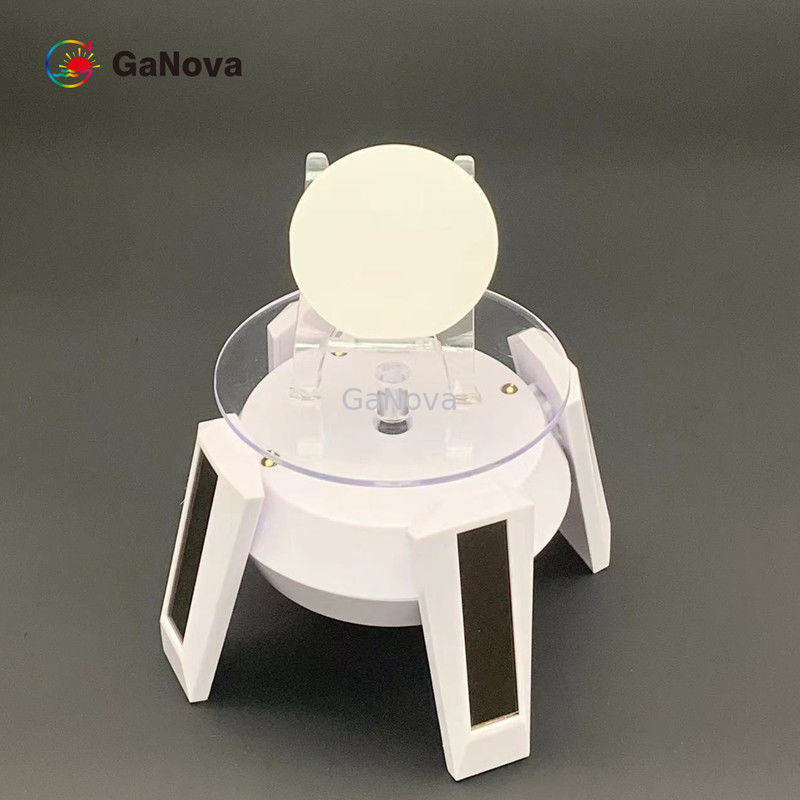

Thick Film (2,3)μm AIN On Sapphire Wafer 2 Inch Semi-Insulating

2 Inch Thick Film (2,3)μm AIN On Sapphire Wafer,SSP,XRD FWHM Of(002)≤100arcsec(102) ≤550arcsec UV Disinfection LED Chip



Overview

If you've ever wondered what is aluminum nitride, you've probably wondered what its potential applications might be. The material is a solid nitride of aluminium and has a very high thermal conductivity of up to 321 W. It also has excellent electrical insulator properties and has a band gap of about six eV at room temperature, making it a great material for optoelectronics.





Specification

Item AlN-T-C-U-C50
Dimensions φ50.8 mm±0.1 mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 mm
Substrate Sapphire(Single or Double Side Polished)
Thickness 1~5μm
Orientation

C-plane (0001)±1o

Conduction Type Semi-Insulating
Crystalline Quality Thickness XRD FWHM of(002) XRD FWHM of(102)
  [1,2)μm ≤80arcsec ≤650arcsec
  [2,3)μm ≤100arcsec ≤550arcsec
  [3,4)μm ≤120arcsec ≤450arcsec
  [4,5)μm ≤160arcsec ≤400arcsec
Edge Exclusion Zone



<2mm

Surface Roughness Ra<1.5nm(10*10μm)
Package Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
