Product Details:
|
| Dimensions: | 50.8 ± 1mm | Thickness: | 350 ± 25μm |
|---|---|---|---|
| Orientation Flat: | (1-100) ± 0.5˚, 16 ± 1mm | Secondary Orientation Flat: | (11-20) ± 3˚, 8 ± 1mm |
| TTV: | ≤ 15μm | BOW: | ≤ 20μm ≤ 40μm |
| Highlight: | 2inch GaN Single Crystal Substrate,Resistivity GaN Single Crystal Substrate |
||

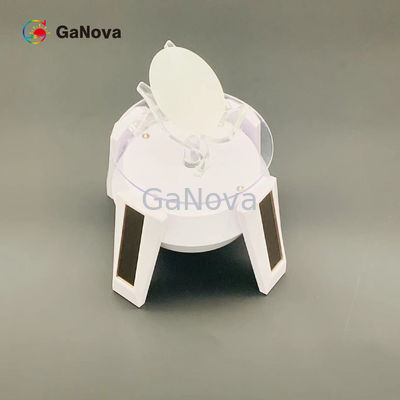

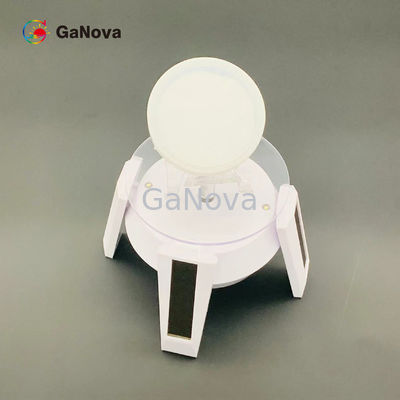

2inch C-face Fe-doped SI-type free-standing GaN single crystal substrate Resistivity > 106 Ω·cm RF devices
Overview
Gallium Nitride (GaN) epitaxial wafers (epi-wafers). GaN high-electron-mobility transistors (HEMT) wafers on different substrates such as silicon substrate, sapphire substrate, silicon carbide (SiC) substrate. We offer GaN on SiC wafers for RF and Power applications.
| 2-inch Free-standing U-GaN/SI-GaN Substrates | |||||||
|
Excellent level (S) |
Production level(B) |
Research level (B) |
Dummy level (C) |
Note: (1) Useable area: edge and macro defects exclusion (2) 3 points: the miscut angles of positions (2, 4, 5) are 0.35 ± 0.15o |
|||
| S-1 | S-2 | A-1 | A-2 | ||||
| Dimensions | 50.8 ± 1 mm | ||||||
| Thickness | 350 ± 25 μm | ||||||
| Orientation flat | (1-100) ± 0.5o, 16 ± 1 mm | ||||||
| Secondary orientation flat | (11-20) ± 3o, 8 ± 1 mm | ||||||
| Resistivity (300K) |
< 0.5 Ω·cm for N-type (Undoped; GaN-FS-C-U-C50) or > 1 x 106 Ω·cm for Semi-insulating (Fe-doped; GaN-FS-C-SI-C50) |
||||||
| TTV | ≤ 15 μm | ||||||
| BOW | ≤ 20 μm ≤ 40 μm | ||||||
| Ga face surface roughness |
< 0.2 nm (polished) or < 0.3 nm (polished and surface treatment for epitaxy) |
||||||
| N face surface roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
||||||
| Package | Packaged in a cleanroom in single wafer container | ||||||
| Useable area | > 90% | >80% | >70% | ||||
| Dislocation density | <9.9x105 cm-2 | <3x106 cm-2 | <9.9x105 cm-2 | <3x106 cm-2 | <3x106 cm-2 | ||
| Orientation:C plane (0001) off angle toward M-axis |
0.35 ± 0.15o (3 points) |
0.35 ± 0.15o (3 points) |
0.35 ± 0.15o (3 points) |
||||
| Macro defect density (hole) | 0 cm-2 | < 0.3 cm-2 | < 1 cm-2 | ||||
| Max size of macro defects | < 700 μm | < 2000 μm | < 4000 μm | ||||
