0.001-100 ohm-cm Silicon Wafer P Type Boron Dopant

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

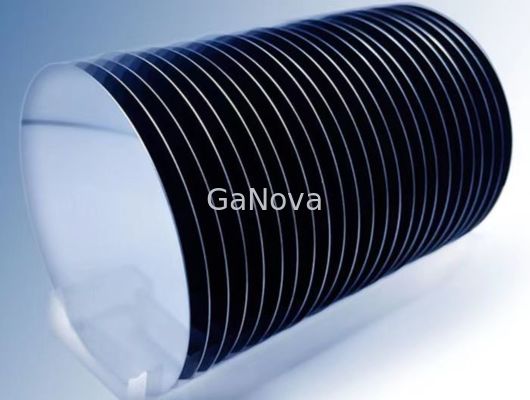

0.001-100 ohm-cm Silicon Wafer P Type Boron Dopant

0.001-100 ohm-cm Silicon Wafer P Type Boron Dopant
0.001-100 ohm-cm Silicon Wafer P Type Boron Dopant

Large Image :  0.001-100 ohm-cm Silicon Wafer P Type Boron Dopant

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD06-001-002
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 50000pcs/month

0.001-100 ohm-cm Silicon Wafer P Type Boron Dopant

Description
Diameter: 2" Grade: Prime
Growth Method: CZ Orientation: <1-0-0>,<1-1-1>,<1-1-0>
Type/Dopant: P Type/Boron,N Type/Phos,N Type/As, N Type/Sb Thickness(μm): 279
Thickness Tolerance: Standard ± 25μm,Maximum Capabilities ± 5μm Resistivity: 0.001-100 Ohm-cm
Surface Finished: P/E,P/P,E/E,G/G TTV(μm): Standard <10μm,Maximum Capabilities<5μm
Bow/Warp: Standard <40μm,Maximum Capabilities<20μm Particle: <10@0.5μm; <10@0.3μm; <10@0.2μm;
Highlight:

100 ohm-cm Silicon Wafer P Type

,

279 um silicon epitaxial wafer

,

Silicon Wafer Boron Dopant

0.001-100 ohm-cm Silicon Wafer Particle<10@0.5μm <10@0.3μm <10@0.2μm

2-Inch Silicon Wafer MEMS Devices, Integrated Circuits,Dedicated Substrates For Discrete Devices




Overview

Depending on what level the silicon has been doped, the semiconductor can be considered extrinsic or degenerate. Extrinsic would be lightly to moderately doped whereas degenerate semiconductors act more as conductors because of the high levels of doping that occurs during the fabrication.





Specification

silicon wafer

Diameter



2"/3"/4"/5"/6"/8"/12"
Grade Prime
Growth Method CZ
Orientation <1-0-0>,<1-1-1>,<1-1-0>
Type/Dopant P Type/Boron,N Type/Phos,N Type/As, N Type/Sb
Thickness(μm) 279/380/525/625/675/725/775
Thickness Tolerance Standard ± 25μm,Maximum Capabilit/ies ± 5μm
Resistivity 0.001-100 ohm-cm
Surface Finished P/E,P/P,E/E,G/G
TTV(μm) Standard <10 μm,Maximum Capabilities<5 μm
Bow/Warp Standard <40 μm,Maximum Capabilities<20 μm
Particle <10@0.5μm; <10@0.3μm; <10@0.2μm;
