Prime 2'' Silicon Wafer Standard <10 μm Maximum Capabilities<5um

Prime 2'' Silicon Wafer Standard &lt;10 μm Maximum Capabilities&lt;5um
Prime 2'' Silicon Wafer Standard &lt;10 μm Maximum Capabilities&lt;5um

Large Image :  Prime 2'' Silicon Wafer Standard <10 μm Maximum Capabilities<5um

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD06-001-002
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 50000pcs/month

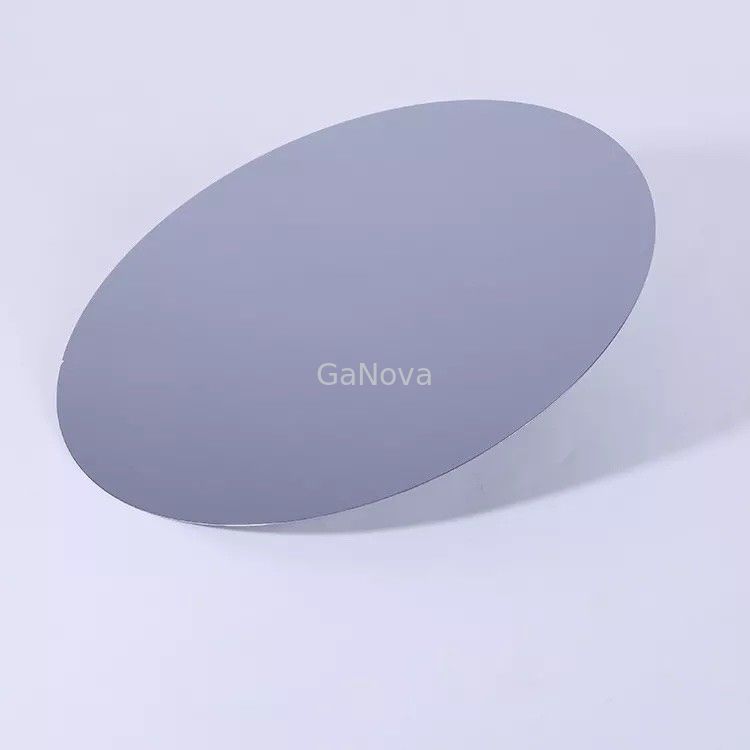

Prime 2'' Silicon Wafer Standard <10 μm Maximum Capabilities<5um

Description
Diameter: 2" Grade: Prime
Growth Method: CZ Resistivity: 0.001-100 Ohm-cm
Surface Finished: P/E,P/P,E/E,G/G TTV(μm): Standard <10μm,Maximum Capabilities<5μm
Bow/Warp: Standard <40μm,Maximum Capabilities<20μm Particle: <10@0.5μm; <10@0.3μm; <10@0.2μm;
Highlight:

2'' Silicon Wafer

,

CZ si wafer

,

UKAS Silicon Wafer

Prime 2" Silicon Wafer TTV(μm) Standard <10μm,Maximum Capabilities<5μm

2-Inch Silicon Wafer MEMS Devices, Integrated Circuits,Dedicated Substrates For Discrete Devices




Overview

The machining performance results of Si with two-different resistivities are discussed using a die-sinking micro-electrical discharge machining technique while varying discharge energy parameters. Moreover, a novel heat-assisted micro-electrical discharge machine technique is performed for machining Si without any conductive layer involved.





Specification

silicon wafer

Diameter



2"/3"/4"/5"/6"/8"/12"
Grade Prime
Growth Method CZ
Orientation <1-0-0>,<1-1-1>,<1-1-0>
Type/Dopant P Type/Boron,N Type/Phos,N Type/As, N Type/Sb
Thickness(μm) 279/380/525/625/675/725/775
Thickness Tolerance Standard ± 25μm,Maximum Capabilit/ies ± 5μm
Resistivity 0.001-100 ohm-cm
Surface Finished P/E,P/P,E/E,G/G
TTV(μm) Standard <10 μm,Maximum Capabilities<5 μm
Bow/Warp Standard <40 μm,Maximum Capabilities<20 μm
Particle <10@0.5μm; <10@0.3μm; <10@0.2μm;
