Product Name: GaN Epitaxial Wafer Dimensions: 10*10.5mm²
Thickness: 350 ±25µm TTV: ≤ 10µm
BoW: - 10µm ≤ BOW ≤ 10µm Macro Defect Density: 0cm⁻²
Highlight:

10*10.5mm2 GaN Single Crystal Substrate

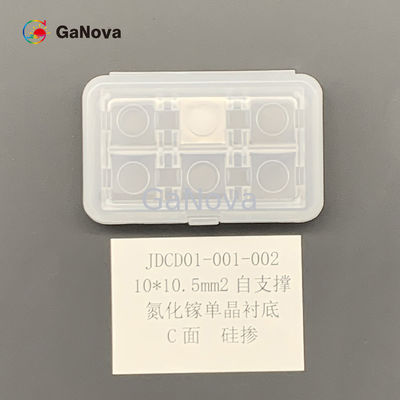

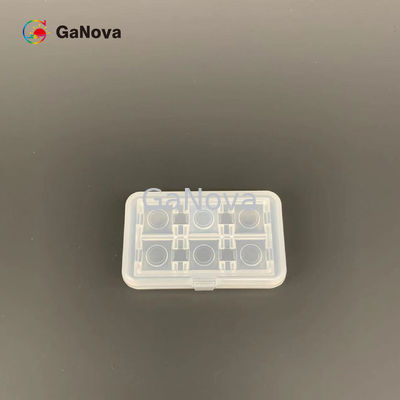

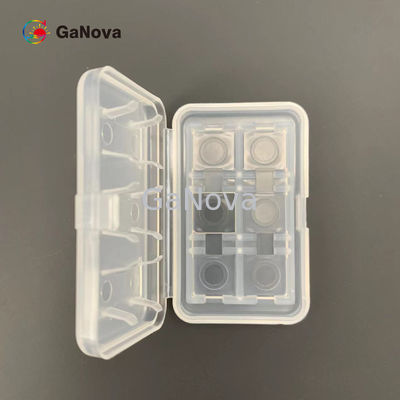

10*10.5mm2 C-face Si-doped n-type free-standing GaN single crystal substrate Resistivity < 0.05 Ω·cm Power device/laser wafer




Overview
Gallium Nitride (GaN) substrate is a high-quality single-crystal substrate. It is made with original HVPE method and wafer processing technology, which has been originally developed for many years. The features are high crystalline, good uniformity, and superior surface quality.





10 x 10.5 mm2 Free-standing GaN Substrates
Item GaN-FS-C-U-S10 GaN-FS-C-N-S10 GaN-FS-C-SI-S10

10*10.5mm2 GaN Single Crystal Substrate Thickness 350 ±25 µm TTV ≤ 10 µm 0

Remarks:
A circular arc angle (R < 2 mm) is used for distinguishing the Ga and N face.

Dimensions 10 x 10.5 mm2
Thickness 350 ±25 µm
Orientation C plane (0001) off angle toward M-axis 0.35 ±0.15°
Conduction Type N-type N-type Semi-Insulating
Resistivity(300K) < 0.1 Ω·cm < 0.05 Ω·cm > 106 Ω·cm
TTV ≤ 10 µm
BoW - 10 µm ≤ BOW ≤ 10 µm
Ga Face Surface Roughness < 0.2 nm (polished)
or < 0.3 nm (polished and surface treatment for epitaxy)
N Face Surface Roughness 0.5 ~1.5 μm
option: 1~3 nm (fine ground); < 0.2 nm (polished)
Dislocation Density From 1 x 105 to 3 x 106 cm-2 (calculated by CL)*
Macro Defect Density 0 cm-2
Useable Area > 90% (edge exclusion)
Package Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere

*National standards of China (GB/T32282-2015)
