Product Details:
|
| Dimensions: | 5 X 10mm² | Thickness: | 350 ±25µm |
|---|---|---|---|
| TTV: | ≤ 10µm | BoW: | - 10µm≤ BOW ≤10µm |
| Macro Defect Density: | 0cm⁻² | Useable Area: | > 90% (edge Exclusion) |
| Highlight: | 5*10mm2 GaN Single Crystal Substrate |
||
5*10mm2 A-face Un-doped SI-type free-standing GaN single crystal substrate Resistivity > 106 Ω·cm RF devices wafer
Overview
Thin Epi wafers are commonly used for leading edge MOS devices. Thick Epi or Multi-layered epitaxial wafers are used for the devices mainly to control electric power, and they are contributing to improving the efficiency of energy consumption.
Gallium Nitride (GaN) substrate is a high-quality single-crystal substrate. It is made with original HVPE method and wafer processing technology, which has been originally developed for many years. The features are high crystalline, good uniformity, and superior surface quality.
These GaN wafers realize unprecedented ultra-bright laser diodes and high-efficiency power devices for use in projector light sources, inverters for electric vehicles, and other applications.
| A face Free-standing GaN Substrates | ||||
| Item | GaN-FS-A-U-S |
GaN-FS-A-N-S |
GaN-FS-A-SI-S |
A circular arc angle (R < 2 mm) is used for distinguishing the front and back surface. |
| Dimensions | 5 x 10 mm2 | |||
| Thickness | 350 ±25 µm | |||
| Orientation |
A plane (11-20) off angle toward M-axis 0 ±0.5° A plane (11-20) off angle toward C-axis - 1 ±0.2° |
|||
| Conduction Type | N-type |
N-type |
Semi-Insulating | |
| Resistivity (300K) | < 0.1 Ω·cm | < 0.05 Ω·cm | > 106 Ω·cm | |
| TTV | ≤ 10 µm | |||
| BOW | - 10 µm ≤ BOW ≤ 10 µm | |||
| Front Surface Roughness |
< 0.2 nm (polished); or < 0.3 nm (polished and surface treatment for epitaxy) |
|||
| Back Surface Roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||
| Dislocation Density | From 1 x 105 to 3 x 106 cm-2 | |||
| Macro Defect Density | 0 cm-2 | |||
| Useable Area | > 90% (edge exclusion) | |||

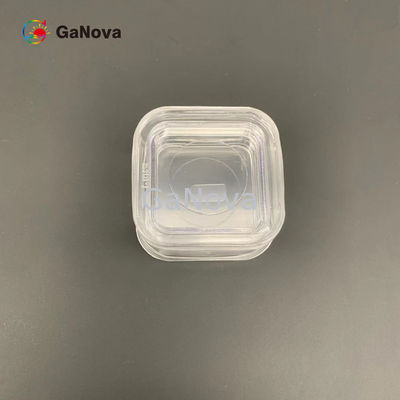

| Package | Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere | |||
Appendix: The diagram of miscut angle
If δ1= 0 ±0.5°, then A plane (11-20) off angle toward M-Axis is 0 ±0.5°.
If δ2= - 1 ±0.2°, then A plane (11-20) off angle toward C-Axis is - 1 ±0.2°.
