Product Details:
|
| Product Name: | Free-Standing GaN Substrate | Dimensions: | 5 X 10 Mm² |
|---|---|---|---|
| Thickness: | 350 ±25µm | TTV: | ≤ 10µm |
| BoW: | - 10µm ≤ BOW ≤ 10µm | Macro Defect Density: | 0cm⁻² |
| Highlight: | Un Doped GaN Epitaxial Wafer,Free Standing GaN Substrates,GaN Epitaxial Wafer M Face |
||

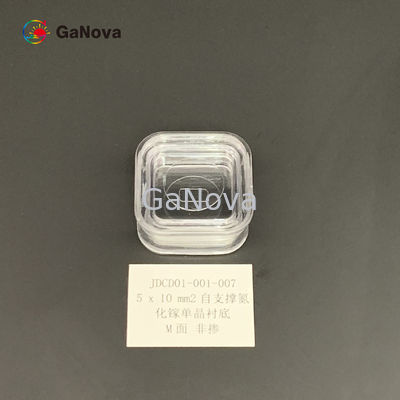

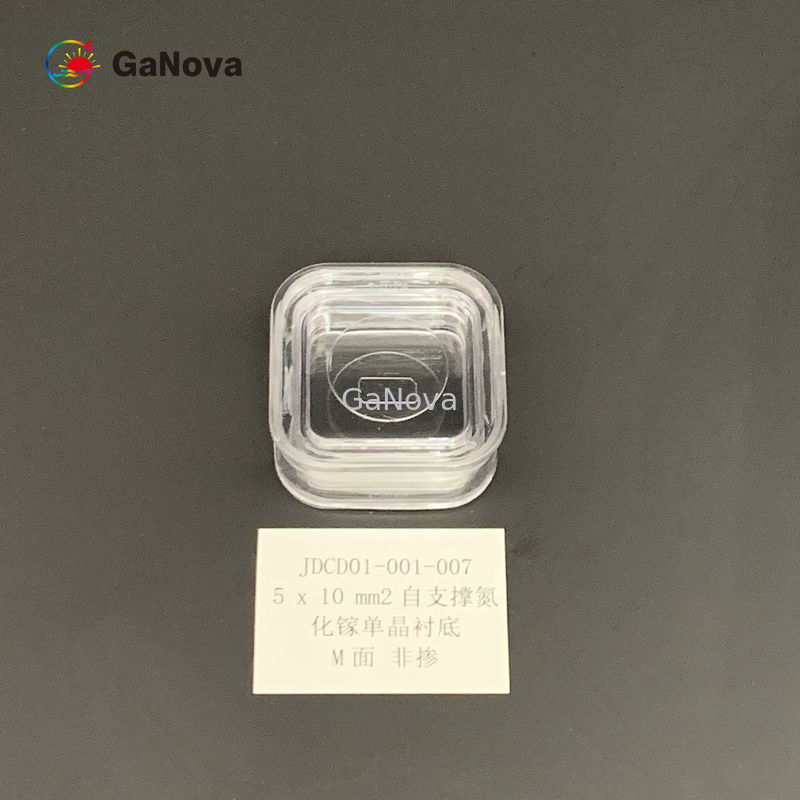

5 X 10 mm2 M Face Free-Standing GaN Substrates 350 ±25 µm TTV ≤ 10 µm
5*10.5mm2 M-face Un-doped n-type free-standing GaN single crystal substrate Resistivity < 0.1 Ω·cm Power device/laser wafer
Overview
GaN substrate has a damage-free, very flat (Rms < 0.2 nm), controlled surface orientation, and controlled atomic steps surfaces. Surface quality suitable for epitaxial growth has been achieved.
Laser diodes: violet LD, blue LD, and green LD
Power electronic devices, High frequency electronic devices
| M face Free-standing GaN Substrates | ||||
| Item |
GaN-FS-M-U-S
|
GaN-FS-M-N-S
|
GaN-FS-M-SI-S |
Remarks: A circular arc angle (R < 2 mm) is used for distinguishing the front and back surface. |
| Dimensions | 5 x 10 mm2 | |||
| Thickness | 350 ±25 µm | |||
| Orientation |
M plane (1- 100) off angle toward A-axis 0 ±0.5° M plane (1- 100) off angle toward C-axis - 1 ±0.2° |
|||
| Conduction Type | N-type | N-type | Semi-Insulating | |
| Resistivity (300K) | < 0.1 Ω·cm | < 0.05 Ω·cm | > 106 Ω·cm | |
| TTV | ≤ 10 µm | |||
| BOW | - 10 µm ≤ BOW ≤ 10 µm | |||
| Front Surface Roughness |
< 0.2 nm (polished)； or < 0.3 nm (polished and surface treatment for epitaxy) |
|||
| Back Surface Roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||
| Dislocation Density | From 1 x 105 to 3 x 106 cm-2 | |||
| Macro Defect Density | 0 cm-2 | |||
| Useable Area | > 90% (edge exclusion) | |||
| Package | Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere | |||
Appendix: The diagram of miscut angle
If δ1= 0 ±0.5 degree, then M plane (1- 100) off angle toward A-Axis is 0 ±0.5 degree.
If δ2= - 1 ±0.2 degree, then M plane (1- 100) off angle toward C-Axis is - 1 ±0.2 degree.
