Product Details:
|
| Dimensions: | 5 X 10mm² | Thickness: | 350 ±25µm |
|---|---|---|---|
| Orientation: | (10- 11) Plane Off Angle Toward A-axis 0 ±0.5° (10- 11) Plane Off Angle Toward C-axis - 1 ±0.2° | TTV: | ≤ 10µm |
| BoW: | - 10µm ≤ BOW ≤ 10µm | Macro Defect Density: | 0cm⁻² |
| Useable Area: | > 90% (edge Exclusion) | Product Name: | GaN Epitaxial Wafer |
| Highlight: | 10⁶ Ω·Cm GaN Single Crystal Substrate |
||

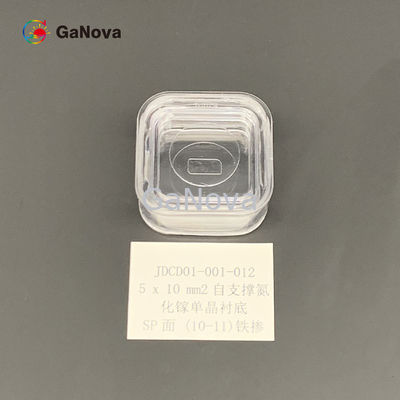

5*10mm2 SP-face (10-11) Un-doped SI-type free-standing GaN single crystal substrate Resistivity > 106 Ω·cm RF devices wafer
Now a new material called Gallium Nitride (GaN) has the potential to replace silicon as the heart of electronic chips. Gallium Nitride can sustain higher voltages than silicon and the current can flow faster through it. Moreover, the energy loss is significantly less in GaN, making it a lot more efficient.
| (10-11) face Free-standing GaN Substrates | ||||
| Item |
GaN-FS-SP-U-S
|
GaN-FS-SP-N-S
|
GaN-FS-SP-SI-S |
Remarks: A circular arc angle (R < 2 mm) is used for distinguishing the front and back surface. |
| Dimensions | 5 x 10 mm2 | |||
| Thickness | 350 ±25 µm | |||
| Orientation |
(10- 11) plane off angle toward A-axis 0 ±0.5° (10- 11) plane off angle toward C-axis - 1 ±0.2° |
|||
| Conduction Type | N-type | N-type | Semi-Insulating | |
| Resistivity (300K) | < 0.1 Ω·cm | < 0.05 Ω·cm | > 106 Ω·cm | |
| TTV | ≤ 10 µm | |||
| BOW | - 10 µm ≤ BOW ≤ 10 µm | |||
| Front Surface Roughness |
< 0.2 nm (polished)； or < 0.3 nm (polished and surface treatment for epitaxy) |
|||
| Back Surface Roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||
| Dislocation Density | From 1 x 105 to 3 x 106 cm-2 | |||
| Macro Defect Density | 0 cm-2 | |||
| Useable Area | > 90% (edge exclusion) | |||

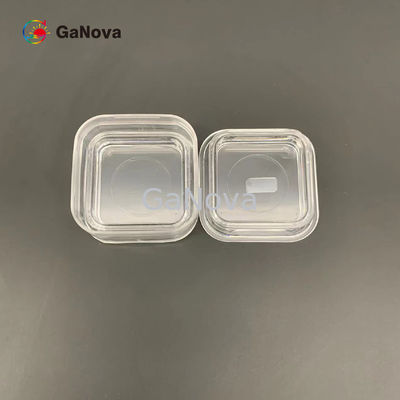

| Package | Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere | |||
Appendix: The diagram of miscut angle
If δ1= 0 ±0.5°, then (10- 11) plane off angle toward A-Axis is 0 ±0.5°.
If δ2= - 1 ±0.2°, then (10- 11) plane off angle toward C-Axis is - 1 ±0.2°.
