Product Details:
|
| Product Name: | 4-inch Si-doped GaN/Sapphire Substrates | Thickness/Thickness STD: | 4.5 ± 0.5μm /< 3% |
|---|---|---|---|
| Orientation: | C Plane (0001) Off Angle Toward A-axis 0.2 ± 0.1 ° | Dimensions: | 100 ± 0.2mm |
| Orientation Flat Of GaN: | (1-100) 0 ± 0.2 °, 30 ±1mm | Conduction Type: | N-type |
| Highlight: | Sapphire GaN Epitaxial Wafer,PIN GaN Epitaxial Wafer,4 Inch GaN Epitaxial Wafer |
||

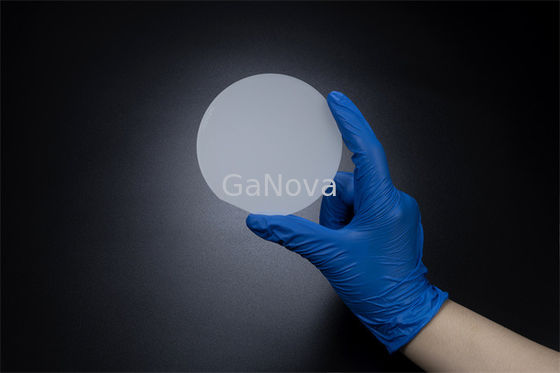

4 inch N-type Si-doped GaN on sapphire wafer SSP resistivity＜0.05 Ω cm LED, laser, PIN epitaxial wafer
For lightly Si-doped GaN ([Si] = 2.1 × 1016 cm−3), the room temperature (RT) electron mobility was as high as 1008 cm2 V−1 s−1, which was dominantly limited by polar optical phonon scattering. Moreover, we found that heavily Si-doped GaN prepared using PSD exhibited an RT mobility as high as 110 cm2 V−1 s−1 at an electron concentration of 2 × 1020 cm−3, which indicated that the resistivity of this film was almost as small as those of typical transparent conductive oxides such as indium tin oxide.
At lower temperatures, the electron mobility increased to 1920 cm2 V−1 s−1 at 136 K, and the temperature dependence was well explained by conventional scattering models. These results indicate that Si-doped GaN prepared using PSD is promising not only for the fabrication of GaN-based power devices but also for use as epitaxial transparent electrode materials for nitride based optical devices.
| 4-inch Si-doped GaN/Sapphire Substrates | ||
| Item | GaN-T-C-N-C100 |
|
| Dimensions | 100 ± 0.2 mm | |
| Thickness/Thickness STD | 4.5 ± 0.5 μm / < 3% | |
| Orientation | C plane (0001) off angle toward A-axis 0.2 ± 0.1 ° | |
| Orientation Flat of GaN | (1-100) 0 ± 0.2 °, 30 ± 1 mm | |
| Conduction Type | N-type | |
| Resistivity (300K) | < 0.05 Ω·cm | |
| Carrier Concentration | > 1 x 1018 cm-3( ≈ doping concentration) | |
| Mobility | > 200 cm2/V·s | |
| *XRD FWHMs | (0002) < 300 arcsec,(10-12) < 400 arcsec | |
| Structure | ~ 2μm nGaN /~ 2.5μm uGaN /~ 25 nm uGaN buffer/650 ± 25 μm sapphire | |
| Orientation of Sapphire | C plane (0001) off angle toward M-axis 0.2 ± 0.1 ° | |
| Orientation Flat of Sapphire | (11-20) 0 ± 0.2 °, 30 ± 1 mm | |
| Sapphire Polish | Single side polished (SSP) / Double side polished (DSP) | |
| Useable Area | > 90% (edge and macro defects exclusion) | |
| Package |
Packaged in a cleanroom in containers: single wafer box (< 3 PCS) or cassette (≥ 3 PCS) |
|
