Product Details:
|
| Dimensions: | 100 ± 0.2mm | Thickness/Thickness STD: | 4.5 ± 0.5μm / < 3% |
|---|---|---|---|
| Orientation: | C Plane (0001) Off Angle Toward A-axis 0.2 ± 0.1 ° | Orientation Flat Of GaN: | (1-100) 0 ± 0.2°, 30 ± 1mm |
| Conduction Type: | N-type | ||
| Highlight: | PIN GaN On Sapphire Wafer,4 Inch GaN On Sapphire Wafer |
||
4 inch N-type UID-doped GaN on sapphire wafer SSP resistivity＞0.5 Ω cm LED, laser, PIN epitaxial wafer
For example, GaN is the substrate which makes violet (405 nm) laser diodes possible, without use of nonlinear optical frequency-doubling. Its sensitivity to ionizing radiation is low (like other group III nitrides), making it a suitable material for solar cell arrays for satellites. Military and space applications could also benefit as devices have shown stability in radiation environments.
| 4-inch Undoped GaN/Sapphire Substrates | ||
| Item | GaN-T-C-U-C100 |
|
| Dimensions | 100 ± 0.2 mm | |
| Thickness/Thickness STD | 4.5 ± 0.5 μm / < 3% | |
| Orientation | C plane (0001) off angle toward A-axis 0.2 ± 0.1 ° | |
| Orientation Flat of GaN | (1-100) 0 ± 0.2 °, 30 ± 1 mm | |
| Conduction Type | N-type | |
| Resistivity (300K) | > 0.5 Ω·cm | |
| Carrier Concentration | < 2 x 1017 cm-3 | |
| Mobility | > 300 cm2/V·s | |
| *XRD FWHMs | (0002) < 300 arcsec,(10-12) < 400 arcsec | |
| Structure | ~ 4.5μm uGaN /~ 25 nm uGaN buffer/650 ± 25 μm sapphire | |
| Orientation of Sapphire | C plane (0001) off angle toward M-axis 0.2 ± 0.1 ° | |
| Orientation Flat of Sapphire | (11-20) 0 ± 0.2 °, 30 ± 1 mm | |
| Sapphire Polish | Single side polished (SSP) / Double side polished (DSP) | |
| Useable Area | > 90% (edge and macro defects exclusion) | |

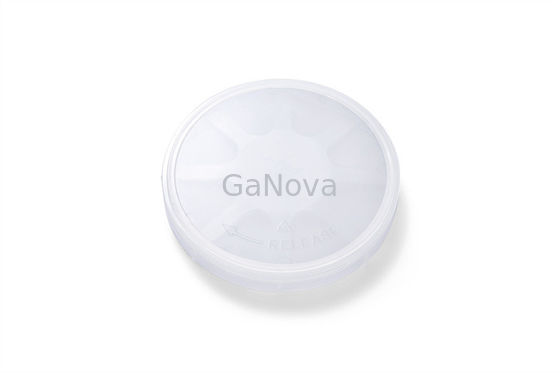

| Package |
Packaged in a cleanroom in containers: single wafer box (< 3 PCS) or cassette (≥ 3 PCS) |
|
