Product Details:
|
| Product Name: | GaN Epitaxial Wafer | Dimensions: | 10 X 10.5mm² |
|---|---|---|---|
| Thickness: | 350 ±25µm | Orientation: | C Plane (0001) Off Angle Toward M-axis 0.35 ±0.15° |
| TTV: | ≤ 10µm | BoW: | - 10µm ≤ BOW ≤ 10µm |
10*10.5mm² C-face Un-doped n-type free-standing GaN single crystal substrate Resistivity < 0.1 Ω·cm Power device/laser
Applications
Laser diodes: violet LD, blue LD, and green LD
Power electronic devices, High frequency electronic devices
More than 10 years of wafer fabrication technology experience with GaAs substrates has been applied to the GaN substrate production. GaN substrate has a damage-free, very flat (Rms < 0.2 nm), controlled surface orientation, and controlled atomic steps surfaces. Surface quality suitable for epitaxial growth has been achieved.
| 10 x 10.5 mm2 Free-standing GaN Substrates | ||||
| Item | GaN-FS-C-U-S10 | GaN-FS-C-N-S10 | GaN-FS-C-SI-S10 |
Remarks: |
| Dimensions | 10 x 10.5 mm2 | |||
| Thickness | 350 ±25 µm | |||
| Orientation | C plane (0001) off angle toward M-axis 0.35 ±0.15° | |||
| Conduction Type | N-type | N-type | Semi-Insulating | |
| Resistivity(300K) | < 0.1 Ω·cm | < 0.05 Ω·cm | > 106 Ω·cm | |
| TTV | ≤ 10 µm | |||
| BoW | - 10 µm ≤ BOW ≤ 10 µm | |||
| Ga Face Surface Roughness | < 0.2 nm (polished) or < 0.3 nm (polished and surface treatment for epitaxy) |
|||
| N Face Surface Roughness | 0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||
| Dislocation Density | From 1 x 105 to 3 x 106 cm-2 (calculated by CL)* | |||
| Macro Defect Density | 0 cm-2 | |||
| Useable Area | > 90% (edge exclusion) | |||

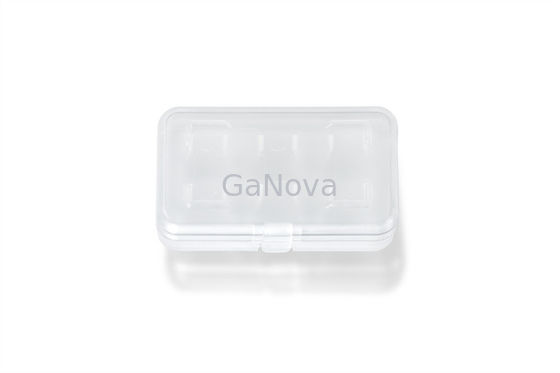

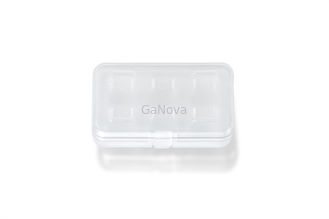

| Package | Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere | |||
*National standards of China (GB/T32282-2015)
