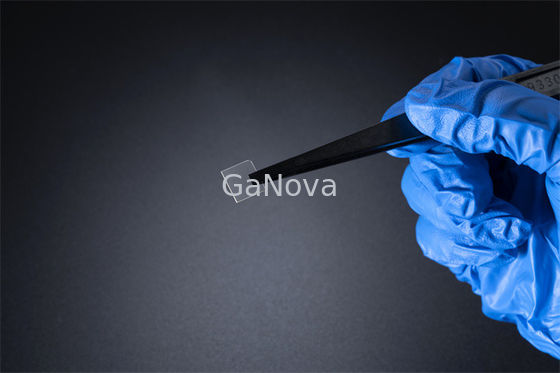

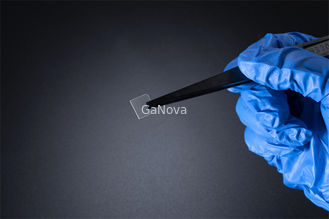

10 X 10.5 mm2 C-Face Un-Doped N-Type Free-Standing GaN Single Crystal Substrate

10 X 10.5 mm2 C-Face Un-Doped N-Type Free-Standing GaN Single Crystal Substrate
10 X 10.5 mm2 C-Face Un-Doped N-Type Free-Standing GaN Single Crystal Substrate

Large Image :  10 X 10.5 mm2 C-Face Un-Doped N-Type Free-Standing GaN Single Crystal Substrate

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD-01-001-001
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 10000pcs/month

10 X 10.5 mm2 C-Face Un-Doped N-Type Free-Standing GaN Single Crystal Substrate

Description
Product Name: GaN Single Crystal Substrate Dimensions: 10 X 10.5mm²
Thickness: 350 ±25µm Orientation: C Plane (0001) Off Angle Toward M-axis 0.35 ±0.15°
BoW: - 10µm ≤ BOW ≤ 10µm Macro Defect Density: 0cm⁻²

10*10.5mm² C-face Un-doped n-type free-standing GaN single crystal substrate Resistivity < 0.1 Ω·cm Power device/laser




Overview

Premium quality GaN crystal substrates with low dislocation density (on the order of 105 /cm2) and uniform surface with no periodic defects. These high quality GaN crystals have an usable area of more than 90%.

We sell directly from the factory, and therefore can offer the best price on the market for high quality GaN crystal substrates.



10 x 10.5 mm2 Free-standing GaN Substrates
Item GaN-FS-C-U-S10 GaN-FS-C-N-S10 GaN-FS-C-SI-S10

10 X 10.5 mm2 C-Face Un-Doped N-Type Free-Standing GaN Single Crystal Substrate 0

Remarks:
A circular arc angle (R < 2 mm) is used for distinguishing the Ga and N face.

Dimensions 10 x 10.5 mm2
Thickness 350 ±25 µm
Orientation C plane (0001) off angle toward M-axis 0.35 ±0.15°
Conduction Type N-type N-type Semi-Insulating
Resistivity(300K) < 0.1 Ω·cm < 0.05 Ω·cm > 106 Ω·cm
TTV ≤ 10 µm
BoW - 10 µm ≤ BOW ≤ 10 µm
Ga Face Surface Roughness < 0.2 nm (polished)
or < 0.3 nm (polished and surface treatment for epitaxy)
N Face Surface Roughness 0.5 ~1.5 μm
option: 1~3 nm (fine ground); < 0.2 nm (polished)
Dislocation Density From 1 x 105 to 3 x 106 cm-2 (calculated by CL)*
Macro Defect Density 0 cm-2
Useable Area > 90% (edge exclusion)
Package Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere

*National standards of China (GB/T32282-2015)





10 X 10.5 mm2 C-Face Un-Doped N-Type Free-Standing GaN Single Crystal Substrate 1



About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
