Product Details:
|
| Dimensions: | 100 ± 0.2mm | Product Name: | 4-inch Mg-doped GaN/Sapphire Substrates |
|---|---|---|---|
| Conduction Type: | P-type | Carrier Concentration: | > 1 X 10¹⁷cm⁻³ (doping Concentration Of P+GaN ≥ 5 X 10¹⁹cm⁻³) |
| Resistivity (300K): | < 10Ω·cm | Mobility: | > 5cm²/V·s |
| Highlight: | LED Laser PIN Epitaxial Wafer |
||

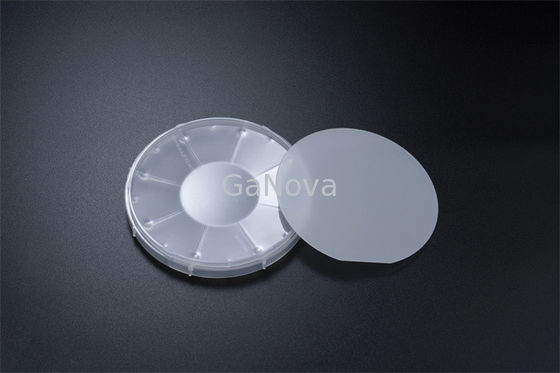

4 inch P-type Mg-doped GaN on sapphire wafer SSP resistivity~10Ω cm LED, laser, PIN epitaxial wafer
The electrical properties of p-type Mg-doped GaN are investigated through variable-temperature Hall effect measurements. Samples with a range of Mg-doping concentrations were prepared by metalorganic chemical vapor phase deposition.
A number of phenomena are observed as the dopant density is increased to the high values typically used in device applications: the effective acceptor energy depth decreases from 190 to 112 meV, impurity conduction at low temperature becomes more prominent, the compensation ratio increases, and the valence band mobility drops sharply.
| 4-inch Mg-doped GaN/Sapphire Substrates | ||
| Item | GaN-T-C-P-C100 |
|
| Dimensions | 100 ± 0.2mm | |
| Thickness/Thickness STD | 4.5 ± 0.5 μm / < 3% | |
| Orientation | C plane (0001) off angle toward A-axis 0.2 ± 0.1 ° | |
| Orientation Flat of GaN | (1-100) 0 ± 0.2 °, 30 ± 1 mm | |
| Conduction Type | P-type | |
| Resistivity (300K) | < 10 Ω·cm | |
| Carrier Concentration | > 1 x 1017 cm-3 (doping concentration of p+GaN ≥ 5 x 1019cm-3) | |
| Mobility | > 5 cm2/V·s | |
| *XRD FWHMs | (0002) < 300arcsec,(10-12) < 400arcsec | |
| Structure |
~ 0.5 μm p+GaN/~ 1.5 μm p-GaN /~ 2.5 μm uGaN /~ 25 nm uGaN buffer/430 ± 25 μm sapphire |
|
| Orientation of Sapphire | C plane (0001) off angle toward M-axis 0.2 ± 0.1 ° | |
| Orientation Flat of Sapphire | (11-20) 0 ± 0.2 °, 30± 1 mm | |
| Sapphire Polish | Single side polished (SSP) / Double side polished (DSP) | |
| Useable Area | > 90% (edge and macro defects exclusion) | |
| Package |
Packaged in a cleanroom in containers: single wafer box (< 3 PCS) or cassette (≥ 3 PCS) |
|
