Product Details:
|
| Product Name: | 2-inch Free-standing N-GaN Substrates | Dimensions: | 50.0 ±0.3mm |
|---|---|---|---|
| Item: | GaN-FS-C-N-C50-SSP | Thickness: | 400 ± 30μm |
| N Face Surface Roughness: | 0.5 ~1.5μm (single Side Polished) | Orientation Flat: | (1- 100) ±0.1˚, 12.5 ± 1mm |
| Highlight: | Freestanding GaN Substrates,Single Side Polished Epitaxial Wafer,N GaN Substrates |
||

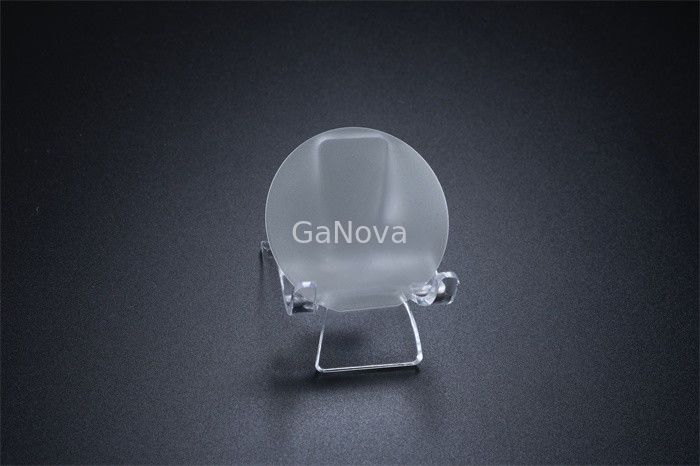

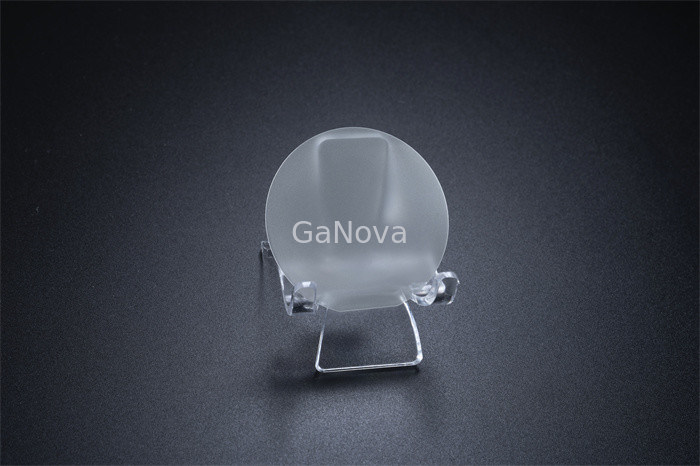

2-Inch Free-Standing N-GaN Substrates N Face Surface Roughness 0.5 ~1.5 μm (Single Side Polished)
2inch C-face Si-doped n-type free-standing GaN single crystal substrate Resistivity < 0.05 Ω·cm Power device/laser wafer
Overview
These GaN wafers realize unprecedented ultra-bright laser diodes and high-efficiency power devices for use in projector light sources, inverters for electric vehicles, and other applications.
Gallium nitride can also be synthesized by injecting ammonia gas into molten gallium at 900-980 °C at normal atmospheric pressure.
| 2-inch Free-standing N-GaN Substrates | ||||||
|
Production level(P) |
Research(R) |
Dummy(D) |
Note: (1) 5 points: the miscut angles of 5 positions are 0.55 ±0.15o (2) 3 points: the miscut angles of positions (2, 4, 5) are 0.55 ±0.15o (3) Useable area: exclusion of periphery and macro defects (holes) |
|||
| P+ | P | P- | ||||
| Item | GaN-FS-C-N-C50-SSP | |||||
| Dimensions | 50.0 ±0.3 mm | |||||
| Thickness | 400 ± 30 μm | |||||
| Orientation flat | (1- 100) ±0.1o, 12.5 ± 1 mm | |||||
| TTV | ≤ 15 μm | |||||
| BOW | ≤ 20 μm | |||||
| Resistivity (300K) | ≤ 0.02 Ω·cm for N-type (Si-doped) | |||||
| Ga face surface roughness | ≤ 0.3 nm (polished and surface treatment for epitaxy) | |||||
| N face surface roughness | 0.5 ~1.5 μm (single side polished) | |||||
| C plane (0001) off angle toward M-axis(miscut angles) |
0.55 ± 0.1o (5 points) |
0.55± 0.15o (5 points) |
0.55 ± 0.15o (3 points) |
|||
| Threading dislocation density | ≤ 7.5 x 105 cm-2 | ≤ 3 x 106 cm-2 | ||||
| Number and max size of holes in Ф47 mm in the center | 0 | ≤ 3@1000 μm | ≤ 12@1500 μm | ≤ 20@3000 μm | ||
| Useable area | > 90% | >80% | >70% | |||
| Package | Packaged in a cleanroom in single wafer container | |||||
