Product Details:
|
| Type: | Flat Sapphire | Product Name: | 4inch GaN-on-Sapphire Blue/Green LED Wafer |
|---|---|---|---|
| Polish: | Single Side Polished (SSP) / Double Side Polished (DSP) | Dimension: | 100 ± 0.2mm |
| Orientation: | C Plane (0001) Off Angle Toward M-axis 0.2 ± 0.1° | Thickness: | 650 ± 25μm |
| Highlight: | 100mm GaN Epitaxial Wafer,5um gan on sapphire wafers,GaN Epitaxial Wafer 5um |
||
Dimension 100 ± 0.2mm 4 Inch Blue LED GaN Epitaxial Wafer On Sapphire SSP Thickness 5.5 ± 0.5μm

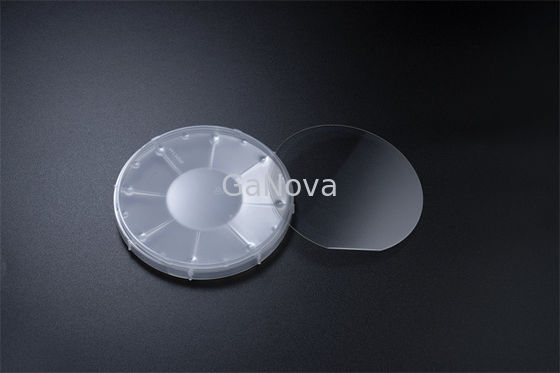

4 inch Blue LED GaN epitaxial wafer on sapphire SSP
Researchers from North Carolina State University and Purdue University have shown that the semiconductor material gallium nitride (GaN) is non-toxic and is compatible with human cells – opening the door to the material's use in a variety of biomedical implant technologies.
LEDs, light emitting diodes, are light sources that are energy efficient and can be made in a variety of colors. Gallium is a main component in many LED lights, with different gallium compounds producing different colored light when exposed to an electric current.
| 4inch GaN-on-Sapphire Blue/Green LED Wafer | ||||
|
Substrate |
Type | Flat Sapphire |
|
|
| Polish | Single side polished (SSP) / Double side polished (DSP) | |||
| Dimension | 100 ± 0.2 mm | |||
| Orientation | C plane (0001) off angle toward M-axis 0.2 ± 0.1° | |||
| Thickness | 650 ± 25 μm | |||
|
Epilayer |
Structure | 0.2μm pGaN/0.5μm MQWs/2.5μm nGaN/2.0μm uGaN | ||
| Thickness | 5.5 ± 0.5μm | |||
| Roughness (Ra) | <0.5 nm | |||
| Dislocation density | < 5 × 108 cm-2 | |||
| Wavelength | Blue LED | Green LED | ||
| 465 ± 10 nm | 525 ± 10 nm | |||
| Wavelength FWHMs | < 25 nm | < 40 nm | ||
| Chip Performance | Cut-in voltage@1μA | 2.3-2.5V | 2.2-2.4V | |
| Useable Area | > 90% (edge and macro defects exclusion) | |||
|
Package |
Packaged in a cleanroom in a single wafer container |
|||
