Product Details:
|
| Product Name: | 4inch GaN-on-Sapphire Blue/Green LED Wafer | Type: | Flat Sapphire |
|---|---|---|---|
| Thickness: | 650 ± 25μm | Orientation: | C Plane (0001) Off Angle Toward M-axis 0.2 ± 0.1° |
| Polish: | Single Side Polished (SSP) / Double Side Polished (DSP) | Dimension: | 100 ± 0.2mm |
| Highlight: | 625um GaN Epitaxial Wafer,SSP gan on sapphire wafers,675um GaN Epitaxial Wafer |
||

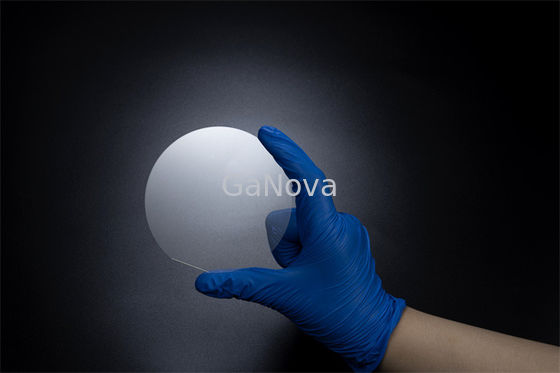

Substrate Thickness 650 ± 25 μm 4 Inch Blue LED GaN Epitaxial Wafer On Sapphire SSP Flat Sapphire
4 inch Blue LED GaN epitaxial wafer on sapphire SSP
For example, GaN is the substrate which makes violet (405 nm) laser diodes possible, without use of nonlinear optical frequency-doubling. Its sensitivity to ionizing radiation is low (like other group III nitrides), making it a suitable material for solar cell arrays for satellites. Military and space applications could also benefit as devices have shown stability in radiation environments.
| 4inch GaN-on-Sapphire Blue/Green LED Wafer | ||||
|
Substrate |
Type | Flat Sapphire |
|
|
| Polish | Single side polished (SSP) / Double side polished (DSP) | |||
| Dimension | 100 ± 0.2 mm | |||
| Orientation | C plane (0001) off angle toward M-axis 0.2 ± 0.1° | |||
| Thickness | 650 ± 25 μm | |||
|
Epilayer |
Structure | 0.2μm pGaN/0.5μm MQWs/2.5μm nGaN/2.0μm uGaN | ||
| Thickness | 5.5 ± 0.5μm | |||
| Roughness (Ra) | <0.5 nm | |||
| Dislocation density | < 5 × 108 cm-2 | |||
| Wavelength | Blue LED | Green LED | ||
| 465 ± 10 nm | 525 ± 10 nm | |||
| Wavelength FWHMs | < 25 nm | < 40 nm | ||
| Chip Performance | Cut-in voltage@1μA | 2.3-2.5V | 2.2-2.4V | |
| Useable Area | > 90% (edge and macro defects exclusion) | |||
|
Package |
Packaged in a cleanroom in a single wafer container |
|||
