Product Details:
|
| Product Name: | GaN Single Crystal Substrate | Dimensions: | 5 X 10mm² |
|---|---|---|---|
| Thickness: | 350 ±25µm | Orientation: | A Plane (11-20) Off Angle Toward M-axis 0 ±0.5° A Plane (11-20) Off Angle Toward C-axis - 1 ±0.2° |
| TTV: | ≤ 10µm | BOW: | - 10µm ≤ BOW ≤ 10µm |
| Highlight: | N Type gan gallium nitride,GaN Epitaxial Substrate Un Doped,A Face gan gallium nitride Substrate |
||

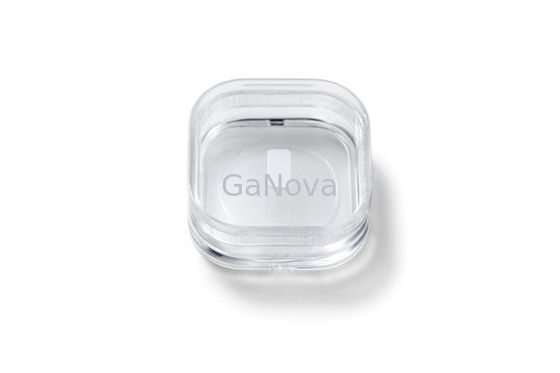

5*10.5mm2 A-face Un-doped n-type free-standing GaN single crystal substrate Resistivity < 0.05 Ω·cm Power device/laser wafer
Overview
Power density is greatly improved in gallium nitride devices compared to silicon ones because GaN has the capacity to sustain much higher switching frequencies. It also has an increased ability to sustain elevated temperatures.
| A face Free-standing GaN Substrates | ||||
| Item | GaN-FS-A-U-S | GaN-FS-A-N-S | GaN-FS-A-SI-S |
Remarks: A circular arc angle (R < 2 mm) is used for distinguishing the front and back surface. |
| Dimensions | 5 x 10 mm2 | |||
| Thickness | 350 ±25 µm | |||
| Orientation |
A plane (11-20) off angle toward M-axis 0 ±0.5° A plane (11-20) off angle toward C-axis - 1 ±0.2° |
|||
| Conduction Type | N-type | N-type | Semi-Insulating | |
| Resistivity (300K) | < 0.1 Ω·cm | < 0.05 Ω·cm | > 106 Ω·cm | |
| TTV | ≤ 10 µm | |||
| BOW | - 10 µm ≤ BOW ≤ 10 µm | |||
| Front Surface Roughness |
< 0.2 nm (polished); or < 0.3 nm (polished and surface treatment for epitaxy) |
|||
| Back Surface Roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||
| Dislocation Density | From 1 x 105 to 3 x 106 cm-2 | |||
| Macro Defect Density | 0 cm-2 | |||
| Useable Area | > 90% (edge exclusion) | |||
| Package | Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere | |||
Appendix: The diagram of miscut angle
If δ1= 0 ±0.5°, then A plane (11-20) off angle toward M-Axis is 0 ±0.5°.
If δ2= - 1 ±0.2°, then A plane (11-20) off angle toward C-Axis is - 1 ±0.2°.
