Product Details:
|
| Product Name: | A Face Free-standing GaN Substrates | Dimensions: | 5 X 10mm² |
|---|---|---|---|
| Thickness: | 350 ±25µm | TTV: | ≤ 10µm |
| BoW: | - 10µm ≤ BOW ≤ 10µm | Macro Defect Density: | 0cm⁻² |
| Highlight: | A Face GaN Epitaxial Wafer,GaN Substrate ISO,GaN Epitaxial Wafer Free Standing |
||

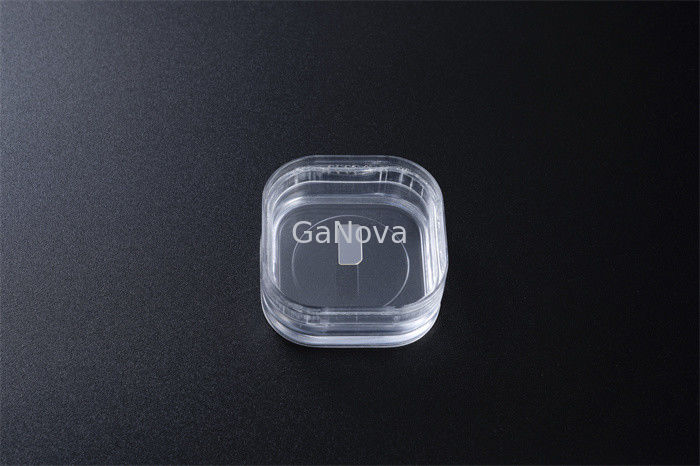

5*10.5mm2 A Face Free-Standing GaN Substrates Thickness 350 ±25 µm
5*10.5mm2 A-face Un-doped SI-type free-standing GaN single crystal substrate Resistivity > 106 Ω·cm RF devices wafer
Overview
Gallium Nitride (GaN) substrate is a high-quality single-crystal substrate. It is made with original HVPE method and wafer processing technology, which has been originally developed for many years. The features are high crystalline, good uniformity, and superior surface quality.
Power density is greatly improved in gallium nitride devices compared to silicon ones because GaN has the capacity to sustain much higher switching frequencies. It also has an increased ability to sustain elevated temperatures.
| A face Free-standing GaN Substrates | ||||
| Item | GaN-FS-A-U-S |
GaN-FS-A-N-S |
GaN-FS-A-SI-S |
Remarks: A circular arc angle (R < 2 mm) is used for distinguishing the front and back surface. |
| Dimensions | 5 x 10 mm2 | |||
| Thickness | 350 ±25 µm | |||
| Orientation |
A plane (11-20) off angle toward M-axis 0 ±0.5° A plane (11-20) off angle toward C-axis - 1 ±0.2° |
|||
| Conduction Type | N-type |
N-type |
Semi-Insulating | |
| Resistivity (300K) | < 0.1 Ω·cm | < 0.05 Ω·cm | > 106 Ω·cm | |
| TTV | ≤ 10 µm | |||
| BOW | - 10 µm ≤ BOW ≤ 10 µm | |||
| Front Surface Roughness |
< 0.2 nm (polished); or < 0.3 nm (polished and surface treatment for epitaxy) |
|||
| Back Surface Roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||
| Dislocation Density | From 1 x 105 to 3 x 106 cm-2 | |||
| Macro Defect Density | 0 cm-2 | |||
| Useable Area | > 90% (edge exclusion) | |||
| Package | Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere | |||
Appendix: The diagram of miscut angle
If δ1= 0 ±0.5°, then A plane (11-20) off angle toward M-Axis is 0 ±0.5°.
If δ2= - 1 ±0.2°, then A plane (11-20) off angle toward C-Axis is - 1 ±0.2°.
