Product Details:
|
| Product Name: | M Face Free-Standing GaN Substrates | Dimensions: | 5 X 10.5mm² |
|---|---|---|---|
| Thickness: | 350 ±25µm | TTV: | ≤ 10µm |
| BoW: | - 10µm ≤ BOW ≤ 10µm | Macro Defect Density: | 0cm⁻² |
| Highlight: | 350um gan on silicon wafer,M Face gan on si wafer,UKAS gan on silicon wafer |
||
M Face Free-Standing GaN Substrates Front Surface Roughness < 0.2 Nm (Polished) Or < 0.3 nm
5*10.5mm2 M-face Un-doped n-type free-standing GaN single crystal substrate Resistivity < 0.1 Ω·cm Power device/laser wafer
Overview
There are three main substrates that are used with GaN - Silicon Carbide (SiC), Silicon (Si) and Diamond. GaN on SiC is the most common of the three and has been used in various applications in the Military and for High Power Wireless Infrastructure Applications. GaN on Si is a newer substrate whose performance is not as good as SiC but it is more economical. GaN on Diamond is the best performing, however since it is new and relatively expensive, applications, where this has been used, are limited.
| M face Free-standing GaN Substrates | ||||
| Item |
GaN-FS-M-U-S
|
GaN-FS-M-N-S
|
GaN-FS-M-SI-S |
Remarks: A circular arc angle (R < 2 mm) is used for distinguishing the front and back surface. |
| Dimensions | 5 x 10 mm2 | |||
| Thickness | 350 ±25 µm | |||
| Orientation |
M plane (1- 100) off angle toward A-axis 0 ±0.5° M plane (1- 100) off angle toward C-axis - 1 ±0.2° |
|||
| Conduction Type | N-type | N-type | Semi-Insulating | |
| Resistivity (300K) | < 0.1 Ω·cm | < 0.05 Ω·cm | > 106 Ω·cm | |
| TTV | ≤ 10 µm | |||
| BOW | - 10 µm ≤ BOW ≤ 10 µm | |||
| Front Surface Roughness |
< 0.2 nm (polished)； or < 0.3 nm (polished and surface treatment for epitaxy) |
|||
| Back Surface Roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||
| Dislocation Density | From 1 x 105 to 3 x 106 cm-2 | |||
| Macro Defect Density | 0 cm-2 | |||
| Useable Area | > 90% (edge exclusion) | |||

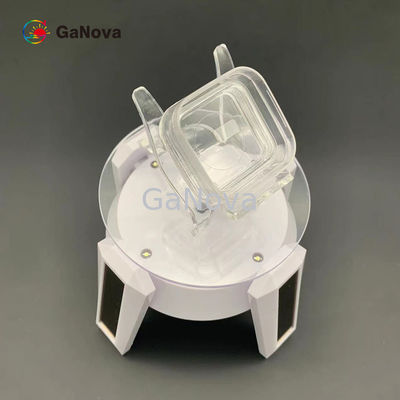

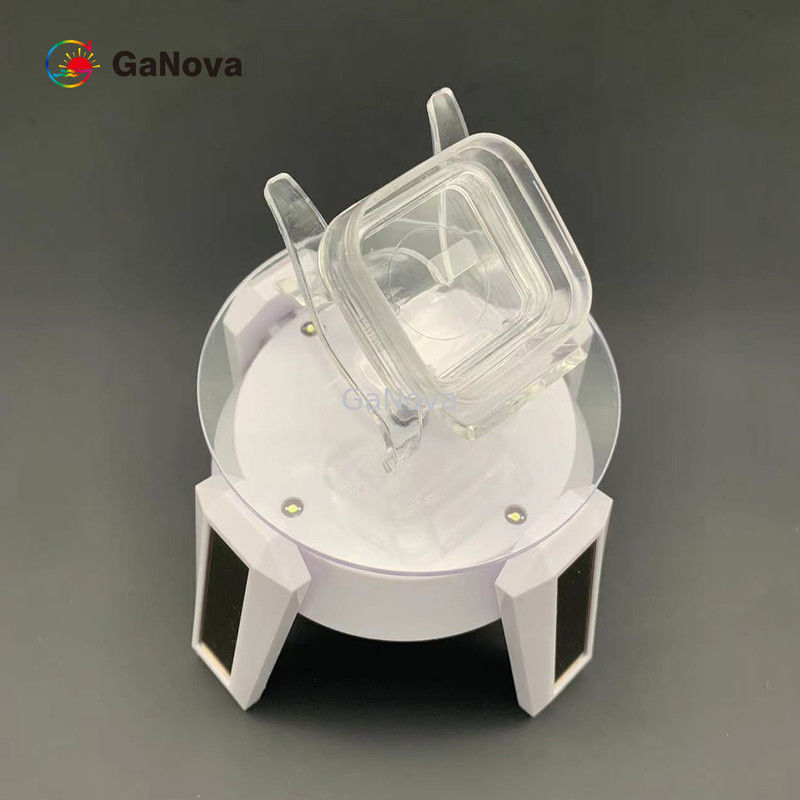

| Package | Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere | |||
Appendix: The diagram of miscut angle
If δ 1= 0 ±0.5 degree, then M plane (1- 100) off angle toward A-Axis is 0 ±0.5 degree.
If δ2= - 1 ±0.2 degree, then M plane (1- 100) off angle toward C-Axis is - 1 ±0.2 degree.
