Product Details:
|
| Product Name: | Free-Standing GaN Single Crystal Substrate | Thickness: | 350 ±25µm |
|---|---|---|---|
| TTV: | ≤ 10µm | BoW: | - 10µm ≤ BOW ≤ 10µm |
| Dislocation Density: | From 1 X 10⁵ To 3 X 10⁶cm⁻² | Macro Defect Density: | 0cm⁻² |
| Highlight: | GaN Epitaxial Wafer SI Type,5x10.5mm2 gan epi wafer,5x10.5mm2 GaN Epitaxial Wafer |
||

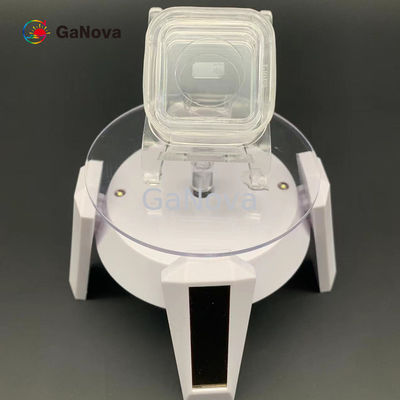

5*10mm2 Free-Standing GaN Single Crystal Substrate (20-21)/(20-2-1) Un-Doped SI-Type
5*10mm2 SP-face (20-21)/(20-2-1) Un-doped SI-type free-standing GaN single crystal substrate Resistivity > 106 Ω·cm RF devices wafer
Overview
Gallium Nitride is a semiconductor technology used for high power, high-frequency semiconductor applications. Gallium Nitride exhibits several characteristics that make it better than GaAs and Silicon for various high power components. These characteristics include a higher breakdown voltage and better electrical resistivity.
| (20-21)/(20-2-1) face Free-standing GaN Substrates | ||||
| Item |
GaN-FS-SP-U-S |
GaN-FS-SP-N-S |
GaN-FS-SP-SI-S |
Remarks: A circular arc angle (R < 2 mm) is used for distinguishing the front and back surface. |
| Dimensions | 5 x 10 mm2 | |||
| Thickness | 350 ±25 µm | |||
| Orientation |
(20-21)/(20-2- 1) plane off angle toward A-axis 0 ±0.5° (20-21)/(20-2- 1) plane off angle toward C-axis - 1 ±0.2° |
|||
| Conduction Type | N-type | N-type | Semi-Insulating | |
| Resistivity (300K) | < 0.1 Ω·cm | < 0.05 Ω·cm | > 106 Ω·cm | |
| TTV | ≤ 10 µm | |||
| BOW | - 10 µm ≤ BOW ≤ 10 µm | |||
| Front Surface Roughness |
< 0.2 nm (polished)； or < 0.3 nm (polished and surface treatment for epitaxy) |
|||
| Back Surface Roughness |
0.5 ~1.5 μm option: 1~3 nm (fine ground); < 0.2 nm (polished) |
|||
| Dislocation Density | From 1 x 105 to 3 x 106 cm-2 | |||
| Macro Defect Density | 0 cm-2 | |||
| Useable Area | > 90% (edge exclusion) | |||
| Package | Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere | |||
Appendix: The diagram of miscut angle
If δ1= 0 ±0.5°, then (20-21)/(20-2- 1) plane off angle toward A-Axis is 0 ±0.5°.
If δ2= - 1 ±0.2°, then (20-21)/(20-2- 1) plane off angle toward C-Axis is - 1 ±0.2°.
