Product Details:
|
| Diameter: | 3" | Grade: | Prime |
|---|---|---|---|
| Growth Method: | CZ | Orientation: | <1-0-0>,<1-1-1>,<1-1-0> |
| Type/Dopant: | P Type/Boron,N Type/Phos,N Type/As, N Type/Sb | Thickness(μm): | 380 |
| Thickness Tolerance: | Standard ± 25μm,Maximum Capabilities ± 5μm | Resistivity: | 0.001-100 Ohm-cm |
| Surface Finished: | P/E,P/P,E/E,G/G | TTV(μm): | Standard <10 Um,Maximum Capabilities<5 Um |
| Bow/Warp: | Standard <40 Um,Maximum Capabilities<20 Um | Particle: | <10@0.5um; <10@0.3um; <10@0.2um; |
| Highlight: | Integrated Circuits Silicon Wafer,Discrete Devices Silicon Wafer |
||

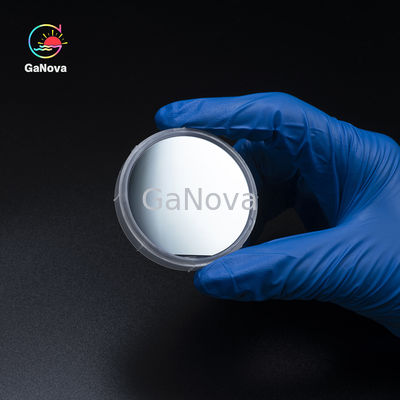

3-inch silicon wafer MEMS devices, integrated circuits,dedicated substrates for discrete devices
Overview
Silicon wafers act as a substrate for microelectronic devices and are especially useful in building electronic circuits because of their conductivity and affordability. Silicon comes seventh as the most common element in the entire universe and the second most common element on earth. Some common materials that contain silicon are beach sand, quartz, flint, agate, among others.
Silicon is the major component in construction materials like brick, cement, and glass. It also tops the chart as the most common semiconductor which has made it to be the most widely used in the electronic and technology sector
Specification
| silicon wafer | |
|
Diameter
|
2"/3"/4"/5"/6"/8"/12" |
| Grade | Prime |
| Growth Method | CZ |
| Orientation | <1-0-0>,<1-1-1>,<1-1-0> |
| Type/Dopant | P Type/Boron,N Type/Phos,N Type/As, N Type/Sb |
| Thickness(μm) | 279/380/525/625/675/725/775 |
| Thickness Tolerance | Standard ± 25μm,Maximum Capabilit/ies ± 5μm |
| Resistivity | 0.001-100 ohm-cm |
| Surface Finished | P/E,P/P,E/E,G/G |
| TTV(μm) | Standard <10 um,Maximum Capabilities<5 um |
| Bow/Warp | Standard <40 um,Maximum Capabilities<20 um |
| Particle | <10@0.5um; <10@0.3um; <10@0.2um; |
