Product Details:
|
| Diameter: | 8" | Grade: | Prime |
|---|---|---|---|
| Growth Method: | CZ | Orientation: | <1-0-0>,<1-1-1>,<1-1-0> |
| Type/Dopant: | P Type/Boron,N Type/Phos,N Type/As, N Type/Sb | Thickness(μm): | 725 |
| Thickness Tolerance: | Standard ± 25μm,Maximum Capabilities ± 5μm | Resistivity: | 0.001-100 Ohm-cm |
| Surface Finished: | P/E,P/P,E/E,G/G | TTV(μm): | Standard <10 Um,Maximum Capabilities<5 Um |
| Bow/Warp: | Standard <40 Um,Maximum Capabilities<20 Um | Particle: | <10@0.5um; <10@0.3um; <10@0.2um; |

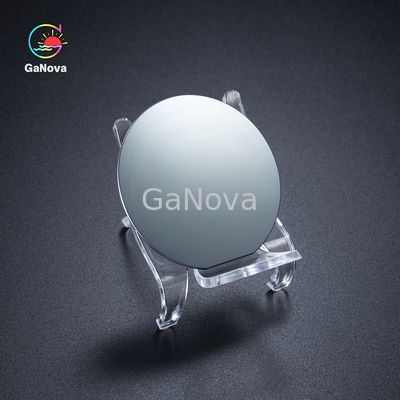

8-inch silicon wafer MEMS devices, integrated circuits,dedicated substrates for discrete devices
Overview
In electronics, Silicon wafers (also known as substrates) are thin slices of highly pure crystalline Silicon (c-Si), used in the production of integrated circuits-a composite of several electronic components. Silicon wafers play an important part in the semiconductor industry as they find their application in electronics and micromechanical devices.
Although silicon crystals may look metallic, they are not entirely metals. Due to the "free electrons" that move easily between atoms, metals are good conductors of electricity, and electricity is the movement of electrons. A pure silicon crystal, on the other hand, is nearly an insulator; allowing very little electricity to pass through it. However, this can be changed through a process called doping.
Specification
| silicon wafer | |
|
Diameter
|
2"/3"/4"/5"/6"/8"/12" |
| Grade | Prime |
| Growth Method | CZ |
| Orientation | <1-0-0>,<1-1-1>,<1-1-0> |
| Type/Dopant | P Type/Boron,N Type/Phos,N Type/As, N Type/Sb |
| Thickness(μm) | 279/380/525/625/675/725/775 |
| Thickness Tolerance | Standard ± 25μm,Maximum Capabilit/ies ± 5μm |
| Resistivity | 0.001-100 ohm-cm |
| Surface Finished | P/E,P/P,E/E,G/G |
| TTV(μm) | Standard <10 um,Maximum Capabilities<5 um |
| Bow/Warp | Standard <40 um,Maximum Capabilities<20 um |
| Particle | <10@0.5um; <10@0.3um; <10@0.2um; |
